Module Assembly Replacement
- Remove the rear door trim (See REPLACEMENT
).
- Remove the glass (See GLASS REPLACEMENT
).
- Remove the inside handle (See LATCH ASSEMBLY REPLACEMENT
).
- Remove the outside handle (See POWER WINDOW MOTOR REPLACEMENT
).

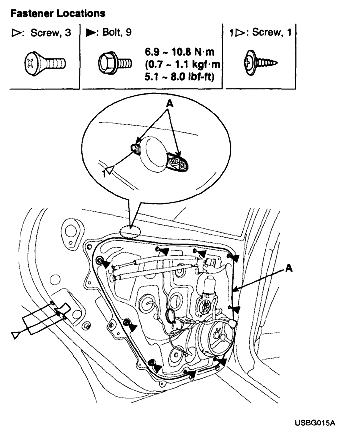

- After loosen the door module mounting bolts, remove the door module (A).
Courtesy of HYUNDAI MOTOR CO.

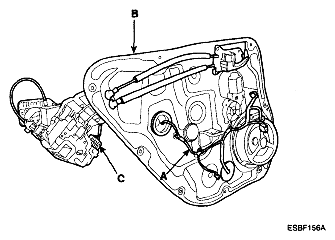

- Disconnect the connector (C).
- Detach the clips, then remove the wiring harness (A).
- Remove the module (B).
Courtesy of HYUNDAI MOTOR CO.
- Installation is the reverse of removal.
NOTE:
- Make sure the connector is plugged in properly and each cable is connected securely.
- Make sure the door lock and open properly.
