Trunk Lid Open Switch Replacement

  1. Remove the front door trim (See REPLACEMENT  ).
  2. Loosen the mounting screw, then remove the trunk lid open switch (A).

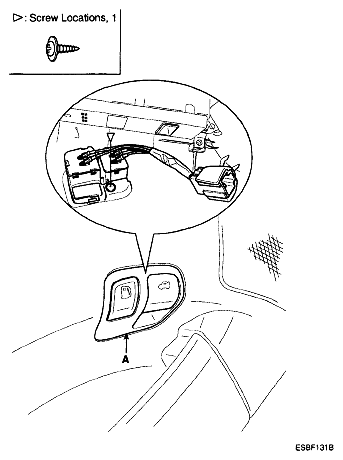

    Fig 1: Identifying Trunk Lid Open Switch
    G04881061Courtesy of HYUNDAI MOTOR CO.
  3. Installation is the reverse of removal.
