Trunk Lid Weatherstrip Replacement

  1. Remove the trunk lid weatherstrip (A).

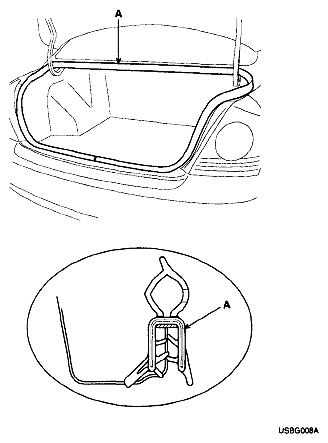

    Fig 1: Identifying Trunk Lid Weatherstrip
    G04881056Courtesy of HYUNDAI MOTOR CO.
  2. Installation is the reverse of removal.
