Abs Warning Lamp Module

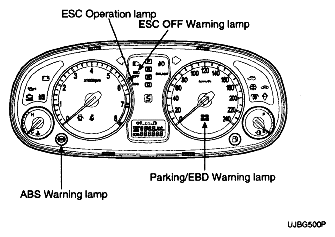

Fig 1: Identifying ABS Warning Lamp

Courtesy of HYUNDAI MOTOR CO.

The active ABS warning lamp module indicates the self-test and failure status of the ABS. The ABS warning lamp shall be on:

• During the initialization phase after IGN ON. (continuously 3 seconds).
• In the event of inhibition of ABS functions by failure.
• During diagnostic mode.
• When the ECU Connector is separated from ECU.
