ESC Switch: Inspection

  1. Remove the ESC OFF switch from the switch panel on the crash pad of the driver's side.

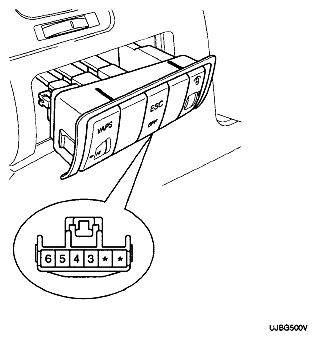

    Fig 1: Identifying ESC Switch
    G04881026Courtesy of HYUNDAI MOTOR CO.
  2. Check the continuity between the switch terminals as the ESC OFF switch is engaged.

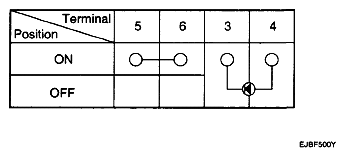

    Fig 2: Terminal Position Chart
    G04881027Courtesy of HYUNDAI MOTOR CO.
