Dimensions Projected
- These are the dimensions measured when the measurement points are projected from the vehicle's surface, and are the reference dimensions used for body alterations.

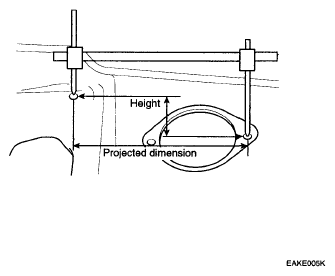

- If the length of the tracking gauge probes is adjustable, measure it by lengthening one of two probes as long as the different value in height of the two surfaces.
