General Service Information: Disassembly

If the disassembly procedure is complex, requiring many parts to be disassembled, all parts should be disassembled in a way that will not affect their performance or external appearance.

1. Inspection of parts

   Each part, when removed, should be carefully inspected for malfunction, deformation, damage, and other problems.

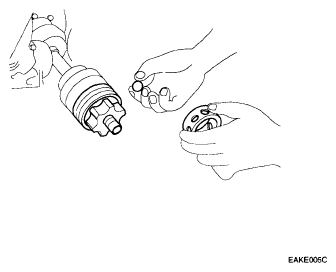

   Fig 1: Identifying Inspection Of Components

   Courtesy of HYUNDAI MOTOR CO.
2. Arrangement of parts

   All disassembled parts should be carefully arranged for effective reassembly.

   Be sure to separate and correctly identify the parts to be replaced from those that will be used again.

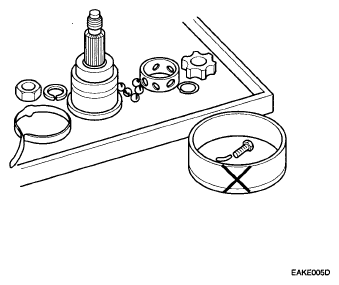

   Fig 2: Identifying Arrangement Of Components

   Courtesy of HYUNDAI MOTOR CO.
3. Cleaning parts for reuse

   All parts to be used again should be carefully and thoroughly cleaned by an appropriate method.

   Fig 3: Cleaning Components

   Courtesy of HYUNDAI MOTOR CO.
