Occupant Classification System Ecu Resetting Procedure (08-BE-011)

Publication date: 2008-12-01
Reference number: 08-BE-011
Supersedes refnos: 06-90-017

OCCUPANT CLASSIFICATION SYSTEM ECU RESETTING PROCEDURE

TECHNICAL SERVICE BULLETIN

Reference Number(s): 08-BE-011, Date of Issue: DECEMBER 01, 2008

HYUNDAI:	2005-09 TUCSON; 2006-09 AZERA 2007-09 TIBURON & SANTA FE
GROUP:	ELECTRICAL

Superceded Bulletin(s): 06-90-017, Date of Issue: DECEMBER 01, 2008

NOTE: This TSB supersedes TSB# 06-90-017 to include the GDS illustrations

DESCRIPTION

Occupant Classification System is designed to detect a properly-seated right front occupant and determine if the passenger's frontal airbag should be enabled (may inflate) or not. The system continuously monitors the occupant status and can change the classification decision if there is a change in occupant status.

This bulletin provides the procedure to reset the system's electronic control unit (referred to as "PODS ECU" on the GDS display screen) using the GDS tool. The PODS ECU (which is different from the main SRS Control Module) needs to be reset under the two conditions noted below:

To erase diagnostic codes relating to the PODS ECU.
To reset the PODS ECU after replacing the front passenger seat cover or seat cushion assembly.

NOTE: Failure to perform the "PODS RESET" procedure before erasing the SRS Control Module code(s) can activate the SRS diagnostic code B1489 (PODS ECU Failure).

NOTE: The PODS ECU must be reset after the front passenger seat cushion assembly is replaced.

NOTE: Refer to the Owner's Manual section "Occupant Classification System" or the Service Shop Manual, under the Restraints Section, for details regarding the PODS ECU and diagnosis.

PODS ECU RESET PROCEDURE

The following procedures are to be followed to erase the PODS ECU diagnostic codes and for PODS ECU resetting.

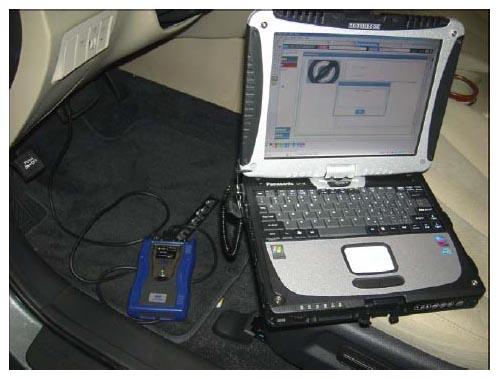

Connect the GDS VCI module to the vehicle's DLC connector and open the GDS program.

Fig 1: Identifying GDS VCI Module
Turn on vehicle ignition and make sure the green power LED is lit on the VCI; if it is not lit press on the power button of the VCI. Within a few seconds, the GDS screen should indicate VCI:USB On in bright blue to the left of the VIN button on the screen.

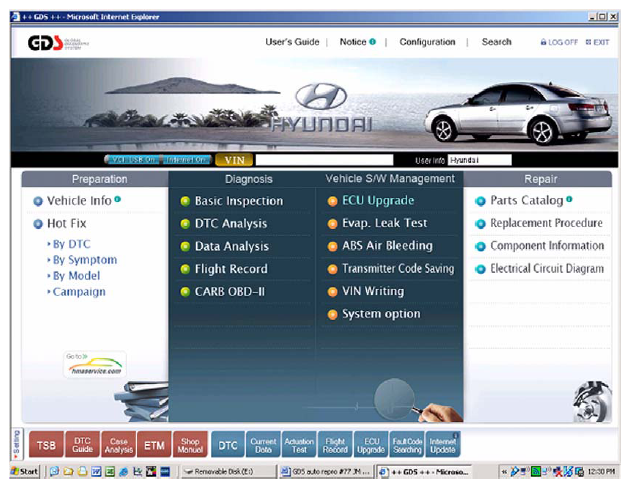

Press the VIN button at the top of the screen to launch the GDS VIN search screen.

Fig 2: Identifying GDS VIN Search Screen

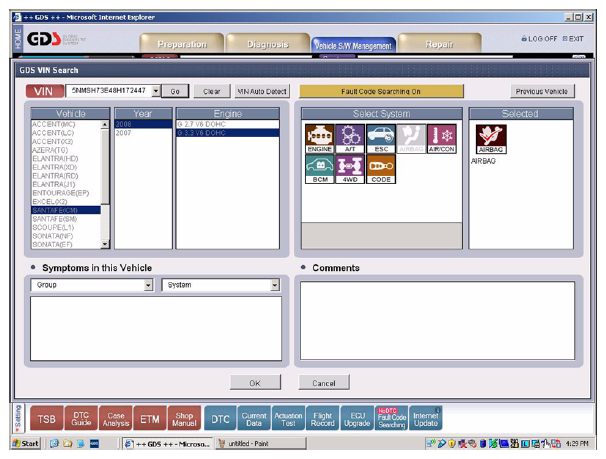

Press the "VIN Auto Detect" button to automatically read the vehicle's VIN (or you will need to manually enter vehicle, year, and engine if it does not automatically read this information) then press AIRBAG for system followed by the OK button at the bottom of the screen.

Fig 3: GDS Screen Display - VIN Auto Detect Button
Press DTC ANALYSIS on the following screen:

Fig 4: GDS Screen Display - DTC Analysis

If there are diagnostic codes related to the PODS ECU stored in the main SRS Control Module, the PODS ECU must be reset first before any SRS diagnostic code(s) can be erased. See table below for PODS ECU related codes.

NOTE: Do not clear any SRS diagnostic code(s) at this time. Proceed to the next step.

PODS ECU RELATED FAULT CODES:

PODS ECU RELATED FAULT CODES

CODE	DESCRIPTION
B1489	PODS ECU Failure
B1490	PODS Sensor (Bladder) Failure
B1493	PODS Communication Error
B1494	PODS Wrong ID (ID Mismatch)
B1495	BTS - Belt Tension Sensor Failure
B1496	PODS Not Calibration

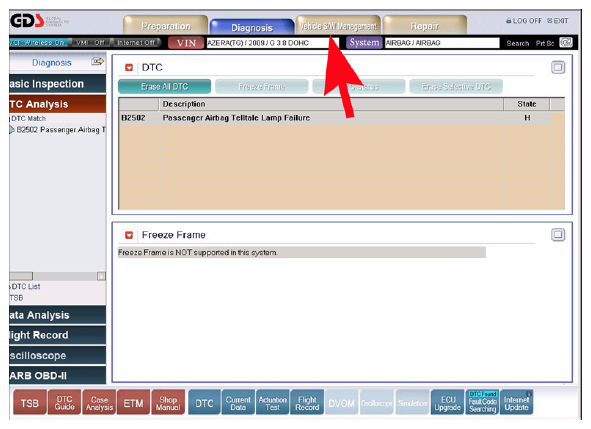

Press the "Vehicle S/W Management" tab on the GDS screen. (Below is an example of the DTC Analysis screen).

Fig 5: GDS Screen Display - Vehicle S/W Management

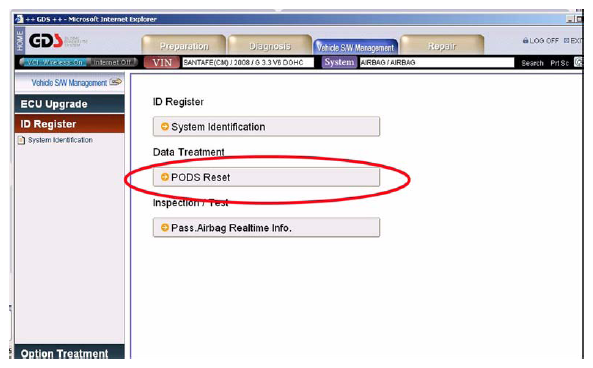

Press "PODS Reset".

Fig 6: GDS Screen Display - PODS Reset

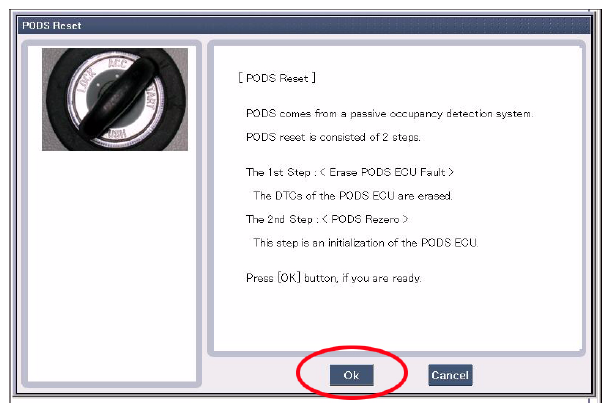

Press "OK" to erase PODS ECU related diagnostic codes.

Fig 7: GDS Screen Display - PODS ECU Related Diagnostic Codes

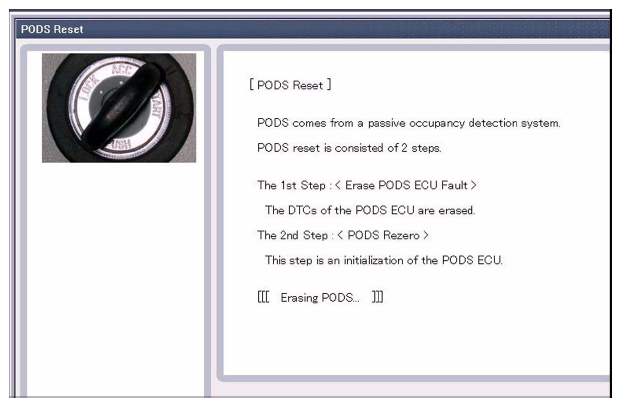

Wait a few seconds for the GDS to erase the PODS ECU related fault codes.

Fig 8: GDS Screen Display - PODS ECU Related Fault Codes

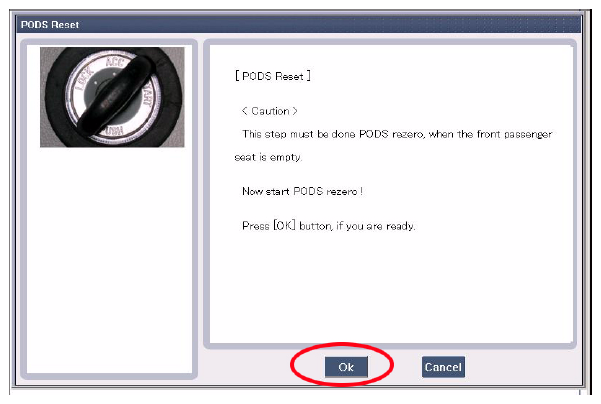

Make sure the front passenger seat is empty and press "OK" to begin the PODS resetting.

Fig 9: GDS Screen Display - PODS Resetting

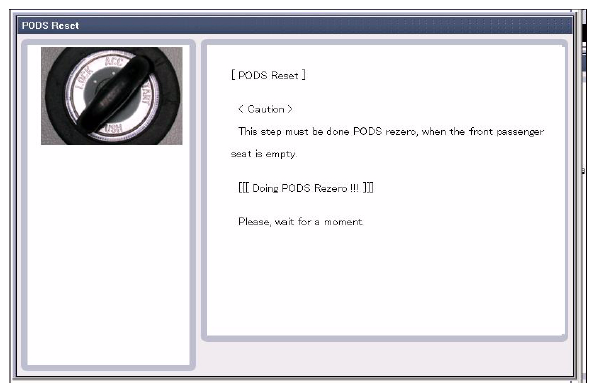

Wait a few seconds for the GDS to reset the PODS ECU.

Fig 10: GDS Screen Display - PODS ECU

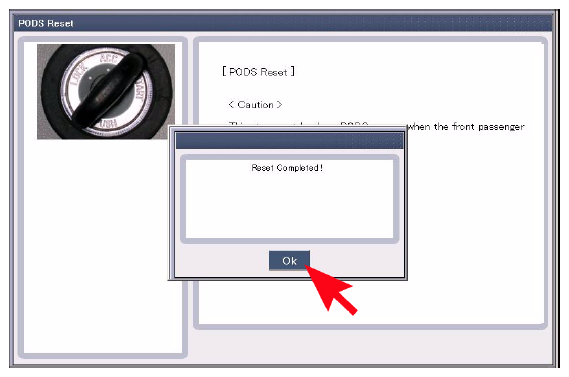

Once the PODS Reset is complete. Press OK to exit the PODS Reset menu.

Fig 11: GDS Screen Display - PODS Reset Menu

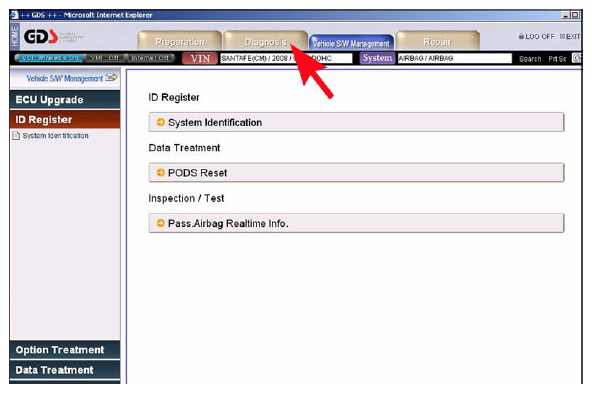

If required, select the Diagnosis tab to go into the DTC Analysis to erase any stored diagnostic code(s) in the SRS main module.
NOTE: Before erasing the diagnostic code(s) in step 14, the ignition must be turned off and then back on.

Fig 12: Selecting Diagnosis Tab

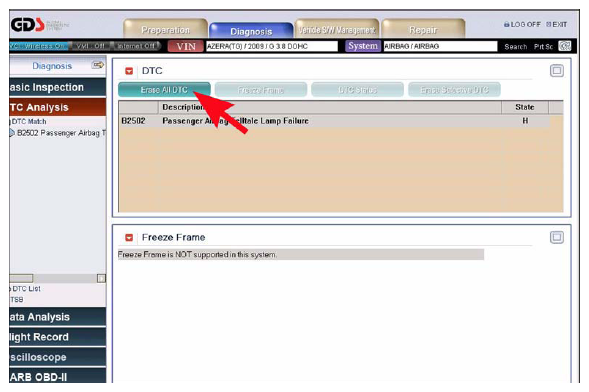

Press "Erase All DTC" to erase all stored diagnostic code(s) in the SRS Control Module.

Fig 13: Pressing Erase All DTC

WARRANTY INFORMATION

Normal warranty procedures applies.
