Ambient Temperature Sensor Connector End View

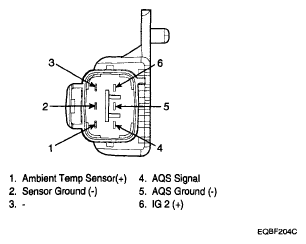

Fig 1: Ambient Temperature Sensor Connector End View
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
