Power Steering Gear Box: Components

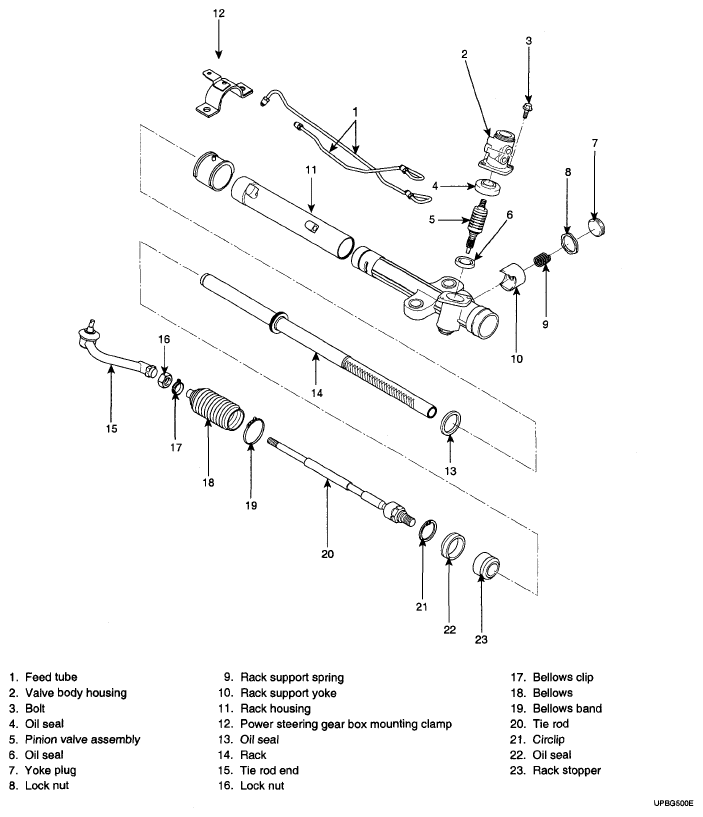

Fig 1: Identifying Power Steering Gear Box Components
G04880547Courtesy of HYUNDAI MOTOR CO.
