Front Lower Arm: Components

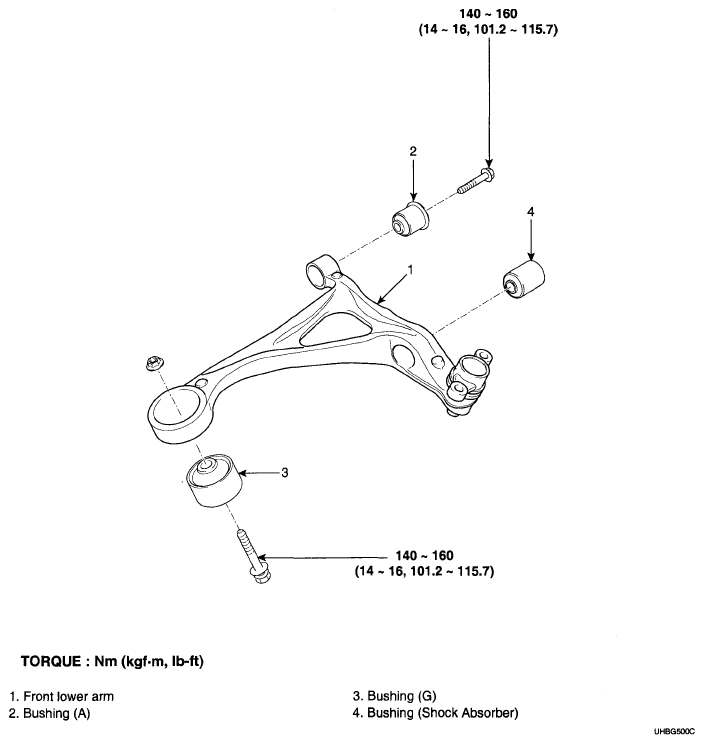

Fig 1: Front Lower Arm Replacement Components With Torque Specifications

G04880382

Courtesy of HYUNDAI MOTOR CO.
