Front Strut Assembly: Components

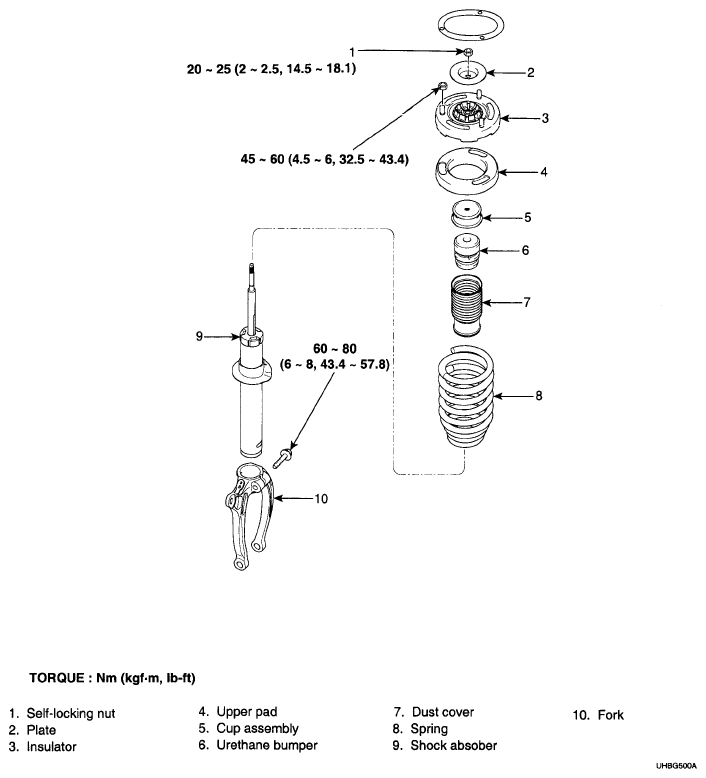

Fig 1: Front Strut Assembly Replacement Components With Torque Specifications
G04880365Courtesy of HYUNDAI MOTOR CO.
