Front Upper Arm: Components

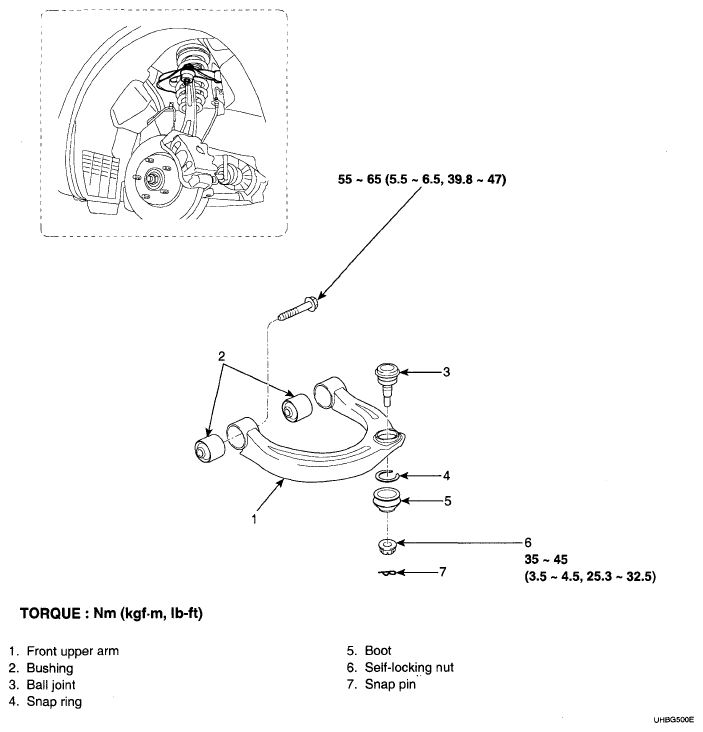

Fig 1: Front Upper Arm Replacement Components With Torque Specifications
G04880395Courtesy of HYUNDAI MOTOR CO.
