Shift Lever: Inspection

Adjusting method for T/M control cable.
1. Set room side lever and T/M side lever to "N" position.
2. Connect room side lever and shift cable.
3. Connect T/M side lever (A) to cable in the following order.
  1. Push cable (B) lightly to "F" direction shown to eliminate FREE PLAY of cable.
  2. Tighten adjusting nut.

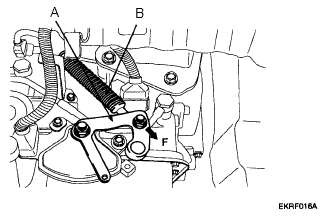

    Fig 1: Identifying T/M Side Lever
    Courtesy of HYUNDAI MOTOR CO.
4. After adjusting according to (2)- (4). Check to be sure that this part operates surely at each range of T/M side corresponding to each position of room lever.
