Component Inspection

Ignition "OFF".
Remove "TRANSAXLE RANGE SWITCH".
Measure the resistance between each terminal of the sensor.
Specification: approx. 0 Ω

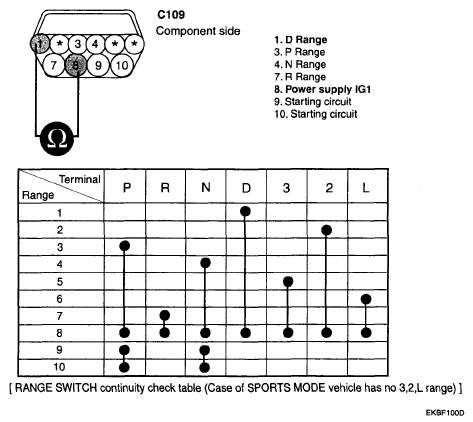

Fig 1: Measuring Resistance Between Terminal Of Sensor
Courtesy of HYUNDAI MOTOR CO.
Is resistance within specifications?
YES
- Substitute with a known-good PCM/TCM and check for proper operation. If the problem is corrected, replace PCM/TCM as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Replace "TRANSAXLE RANGE SWITCH" as necessary and Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
