Variant Code

  1. Check for improper installation of EMS/TCU/ESC.
  2. Connect scantool to Data Link Connector (DLC).
  3. Ignition "ON".
  4. Go in Anti-Lock brake system (See Fig 1, figure 1).
  5. Perform variant code.
  6. Disconnect scantool.
  7. Ignition "OFF" and then ignition "ON". Go to "COMPONENT INSPECTION " Procedure.

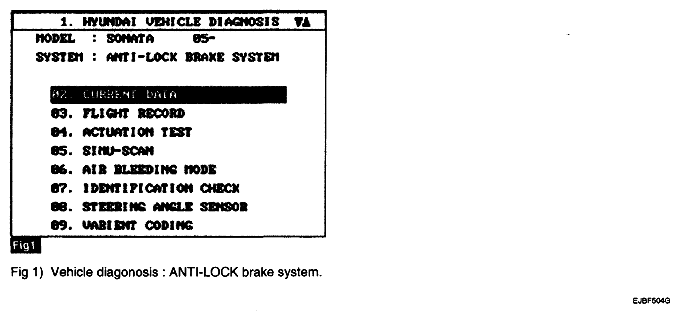

    Fig 1: Diagnosis Function Screen Display - Current Data
    G04880977Courtesy of HYUNDAI MOTOR CO.
