SRS Control Module: Removal

  1. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  2. Remove the ignition key from the vehicle.
  3. Disconnect the DAB, PAB, SAB, CAB, BPT and BUPT connectors.
  4. Remove the floor console and heater ducts. (Refer to INTERIOR )
  5. Disconnect the SRSCM harness connector (A) and (B) from the SRSCM.

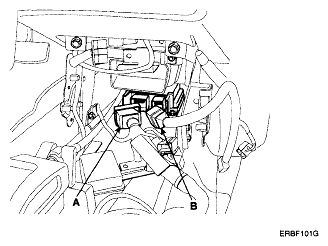

    Fig 1: Identifying SRSCM Harness Connector
    G04880665Courtesy of HYUNDAI MOTOR CO.
  6. Remove the SRSCM mounting bolts (4EA) from the SRSCM, then remove the SRSCM.

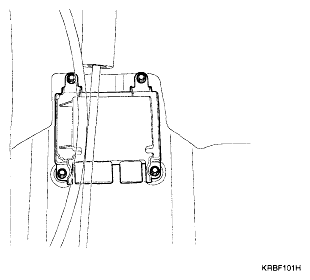

    Fig 2: Identifying SRSCM Mounting Bolts
    G04880666Courtesy of HYUNDAI MOTOR CO.
