Rear Door: Components

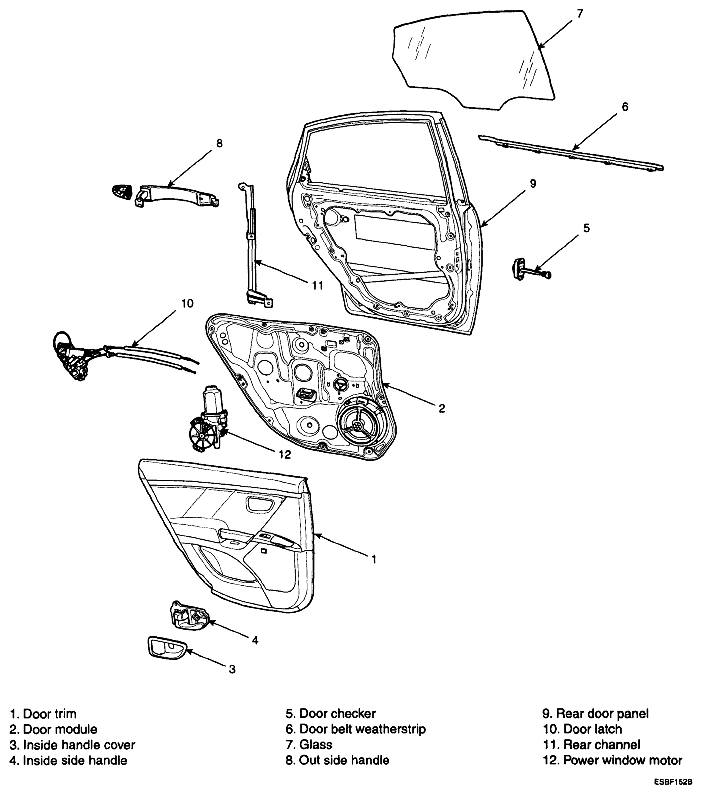

Fig 1: Identifying Rear Door Components

G04881091

Courtesy of HYUNDAI MOTOR CO.
