Alarm Module: Service and Repair

IMMOBILIZER CONTROL UNIT

REPLACEMENT
1. Disconnect the negative (-) battery terminal.

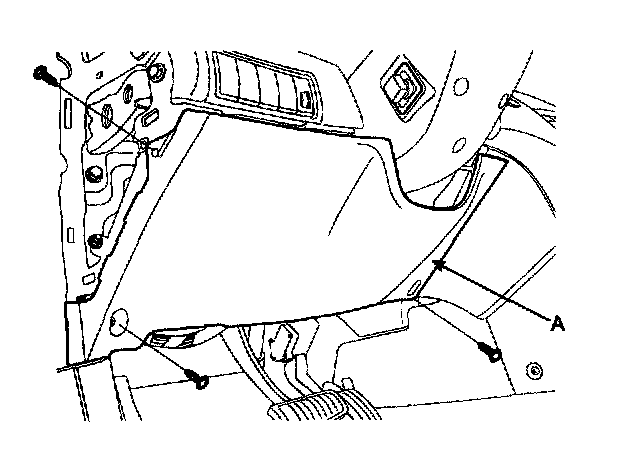

2. Remove the driver crash pad lower panel(A) after removing side cover.
3. Disconnect connectors of lower panel.

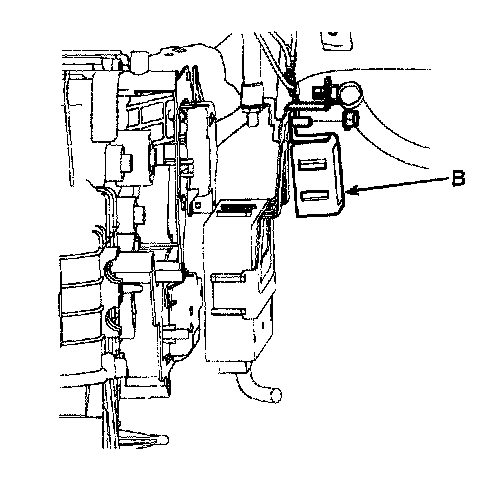

4. Disconnect the 5P connector of the SMARTRA unit and then remove the SMARTRA unit (B) after loosening a nut.
5. Installation is the reverse of removal procedure.
