Refrigerant Pressure Sensor / Switch: Service and Repair

A/C PRESSURE TRANSDUCER

REPLACEMENT
1. Disconnect the negative (-) battery terminal.

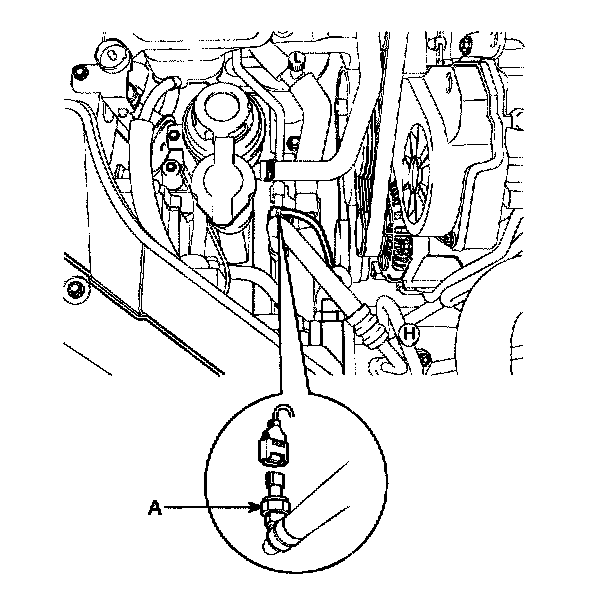

2. Disconnect A/C pressure transducer connector (3P) from wiring harness.

NOTE: Take care that liquid suction pipe is not bent.

3. Installation is the reverse order of removal.
