Fuel Filter: Service and Repair

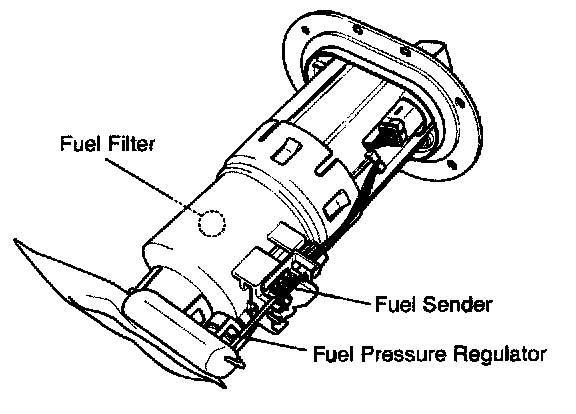

FUEL PUMP (FP)

REM0VAL (INCLUDING FUEL FILTER AND FUEL PRESSURE REGULATOR)
1. Preparation

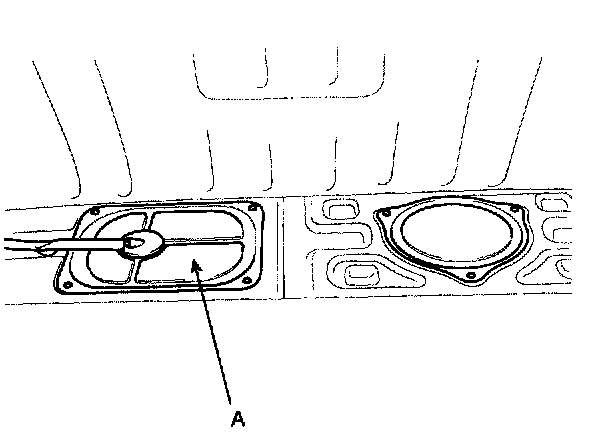

1. Remove the Service Cover (A) in the trunk.

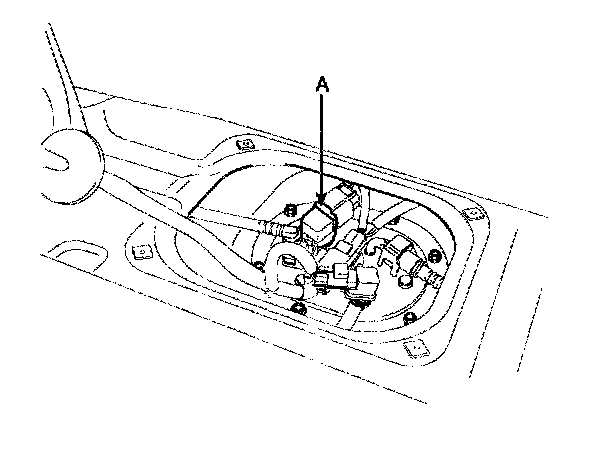

2. Disconnect the Fuel Pump Connector (A).
3. Start the engine and wait until fuel in fuel line is exhausted.
4. After the engine stalls, turn the ignition switch OFF.

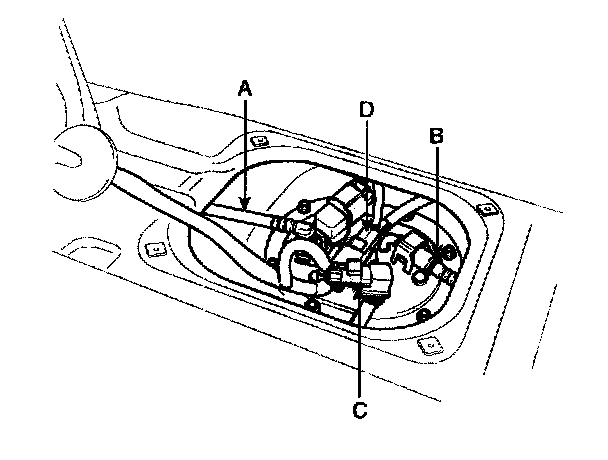

2. Disconnect Suction Tube Quick-Connector (A), Fuel Feed Quick-Connector (B), Fuel Tank Pressure Sensor Connector (C) and Fuel Pump & Sub Fuel Sender Connector (D).




3. Unfasten the Fuel Pump mounting bolts (E) and remove the fuel pump assembly.

INSTALLATION
1. Install the Fuel Pump assembly according to the reverse order of "REM0VAL" procedure.

Tightening Torque : 2.0 - 2.9 N.m (0.2 - 0.3 kgf.m, 1.4 - 2.2 lbf.ft)
