Fuse: Locations

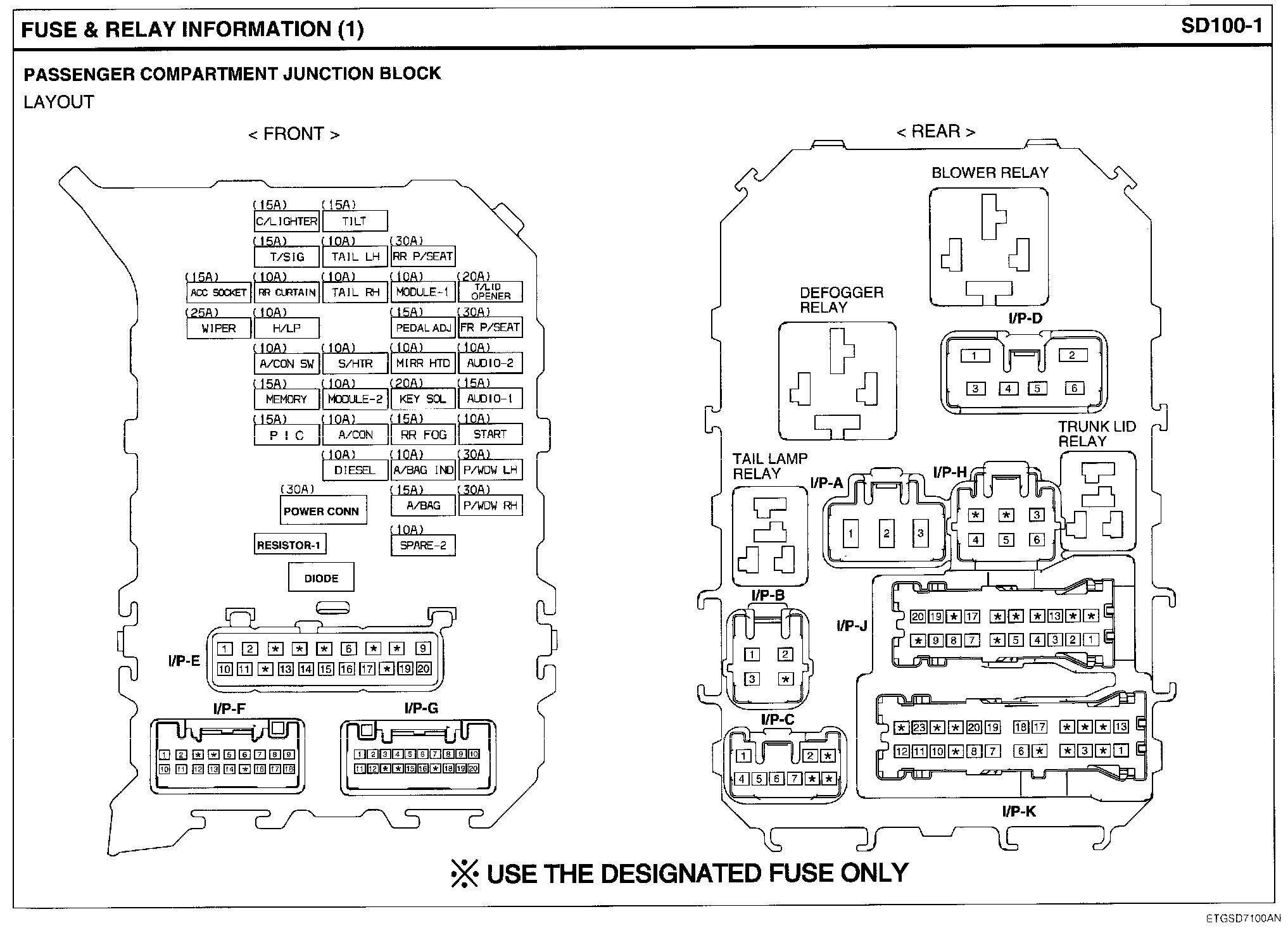

Passenger Compartment Junction Block View:

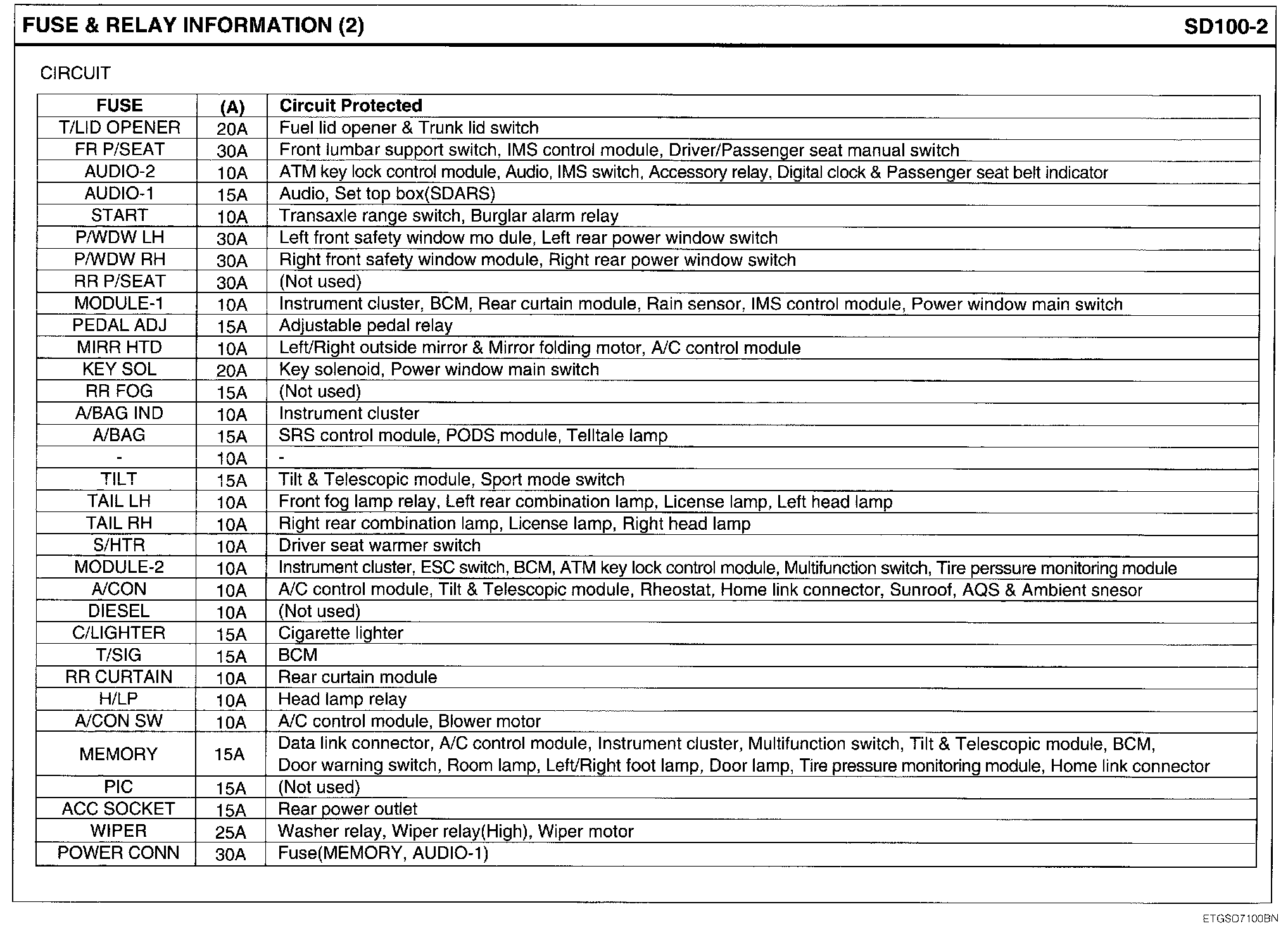

Passenger Compartment Junction Block Circuit Details:

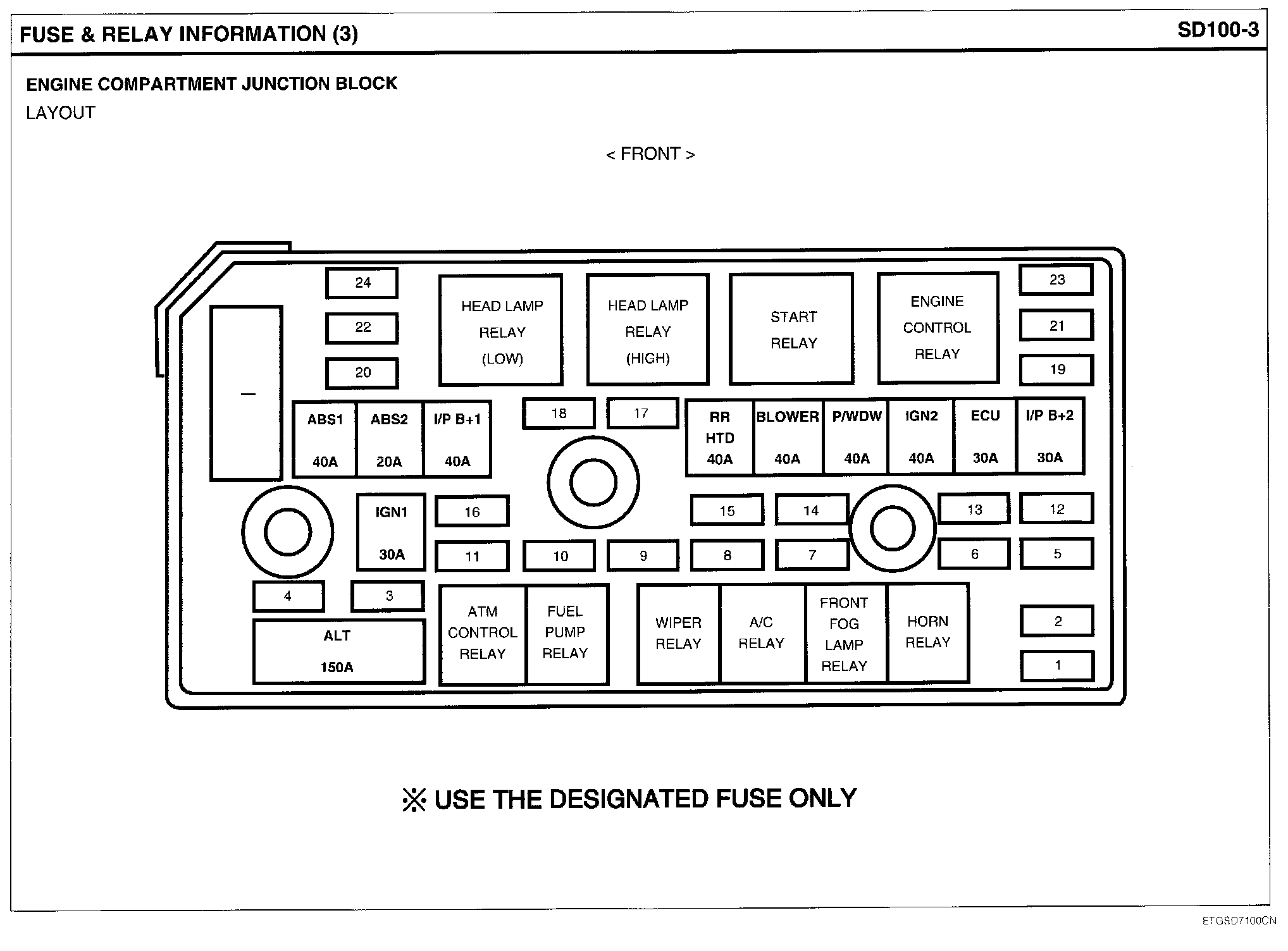

Engine Compartment Junction Block View:

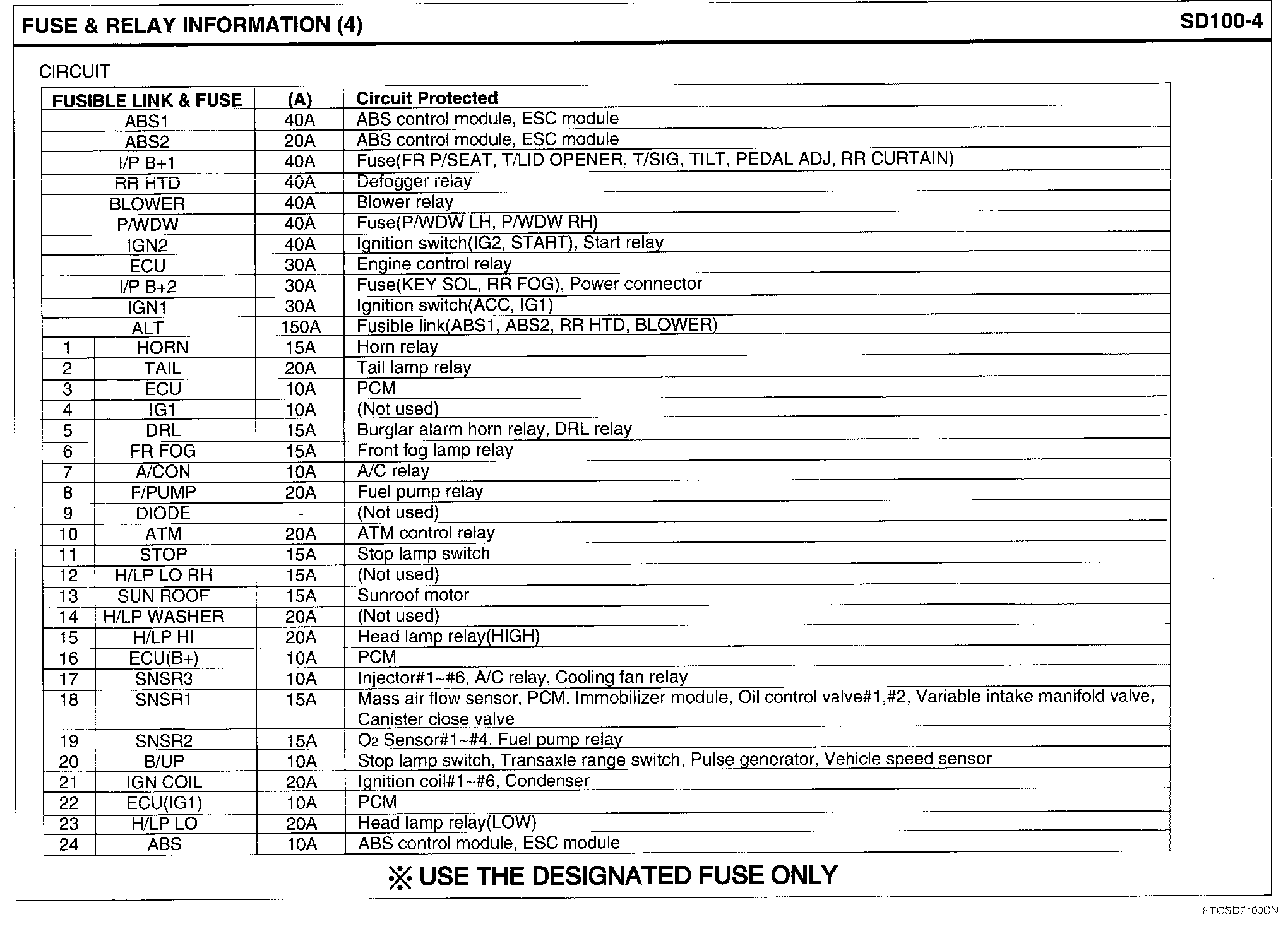

Engine Compartment Junction Block Circuit Details:

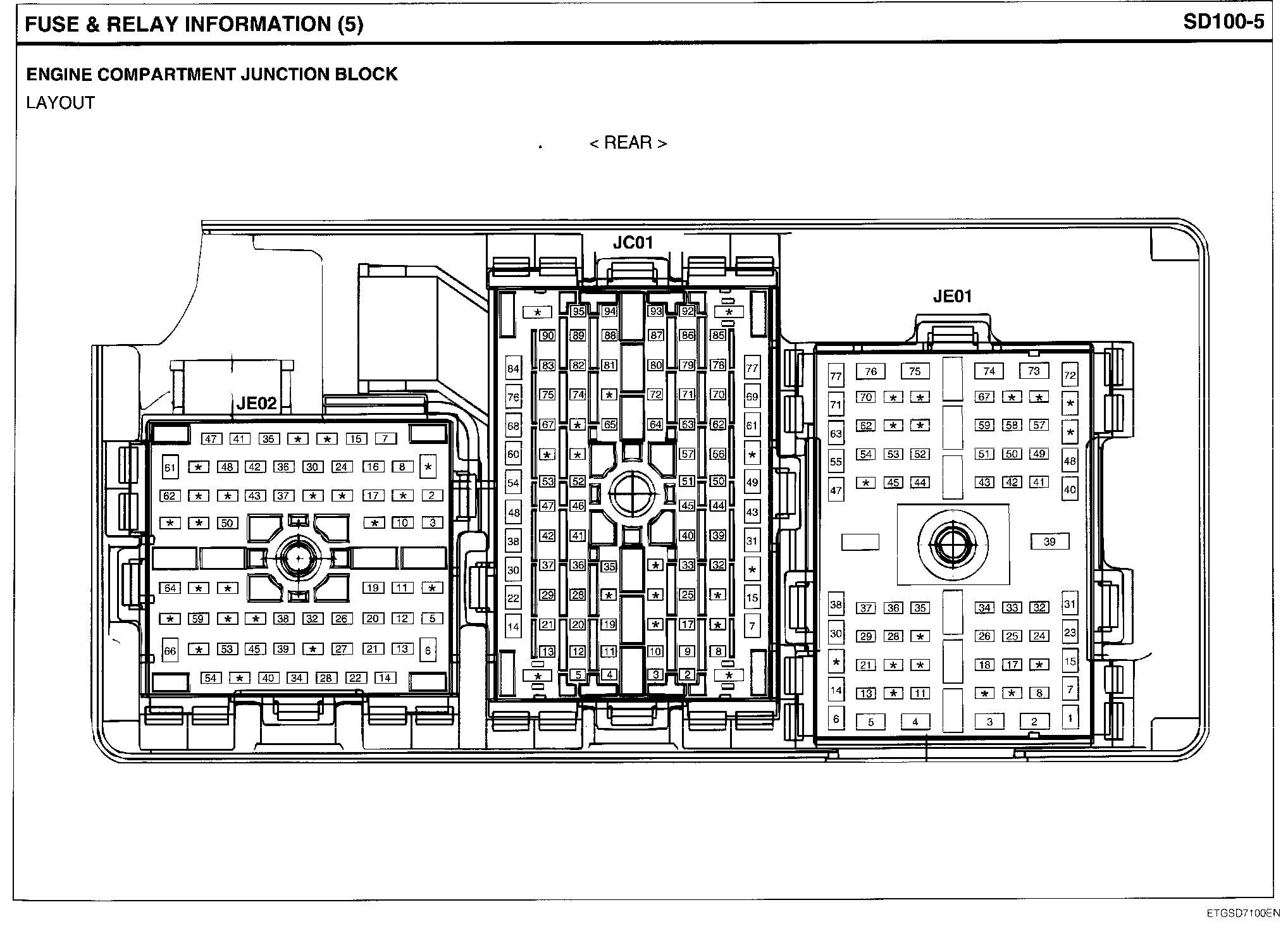

Engine Compartment Junction Block View:

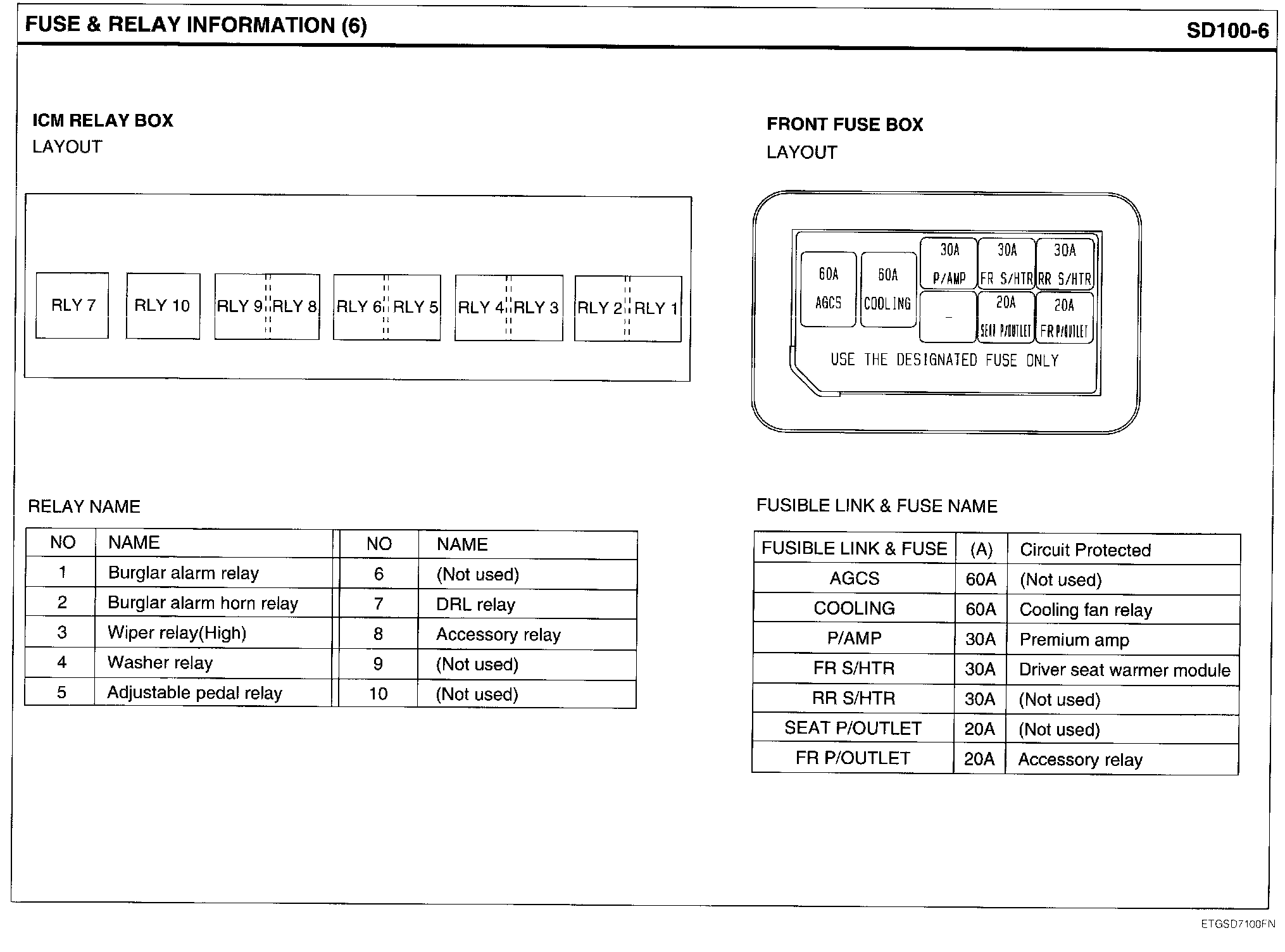

ICM Relay Box View:
