Antitheft - Key Cutting/Immobilizer Programming: Overview
Group: ELECTRICALNumber: 06-90-021
Date: OCTOBER, 2006
Model:
AZERA
Subject:
AZERA - KEY CUTTING PROCEDURE AND IMMOBILIZER PROGRAMMING - UPDATED
This TSB supercedes bulletin 05-90-012.
1. - AZERA KEY CUTTING PROCEDURE

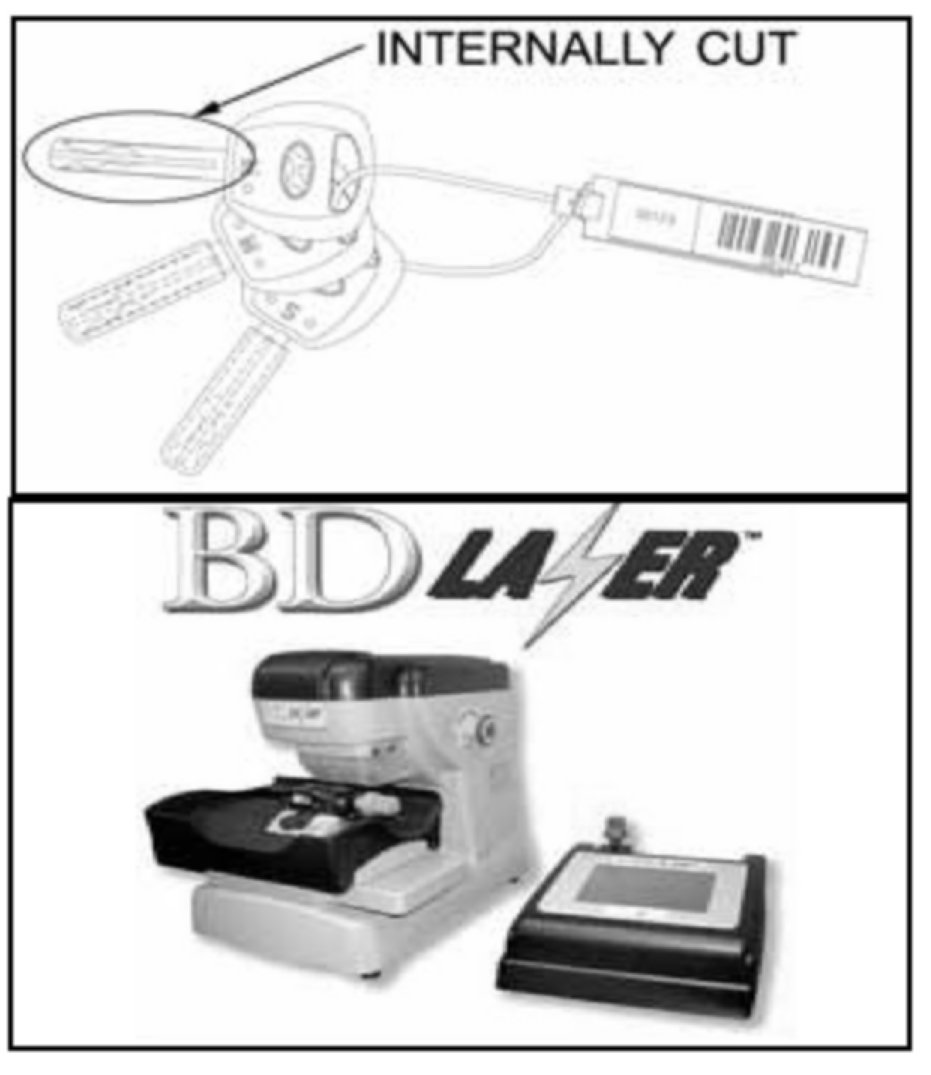

The Azera is equipped with high security internally cut keys. This section of the TSB provides information on how to order complete pre-cut key sets from an HMA Parts Distribution Center.
These special high security key blanks cannot be cut by conventional key cutting machines and must be either ordered pre-cut from your Hyundai Motor America Parts Distribution Center or be cut on a specific key cutting machine.
Azera key blanks can only be code cut by the BD Laser, a machine produced by Barnes Distribution. This machine may not be available at all Hyundai Dealerships, therefore the option to order them pre-cut from an HMA PDC has been made available.
