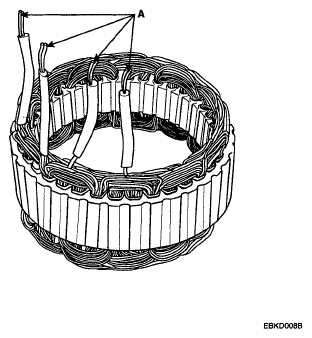

Charging System: Alternator: Inspection: Stator
- Check that there is continuity between each pair of leads(A).
Courtesy of HYUNDAI MOTOR CO.
- Check that there is no continuity between each lead and the coil core.
- If the coil fails either continuity check, replace the generator.
