Electric Power Steering: Components

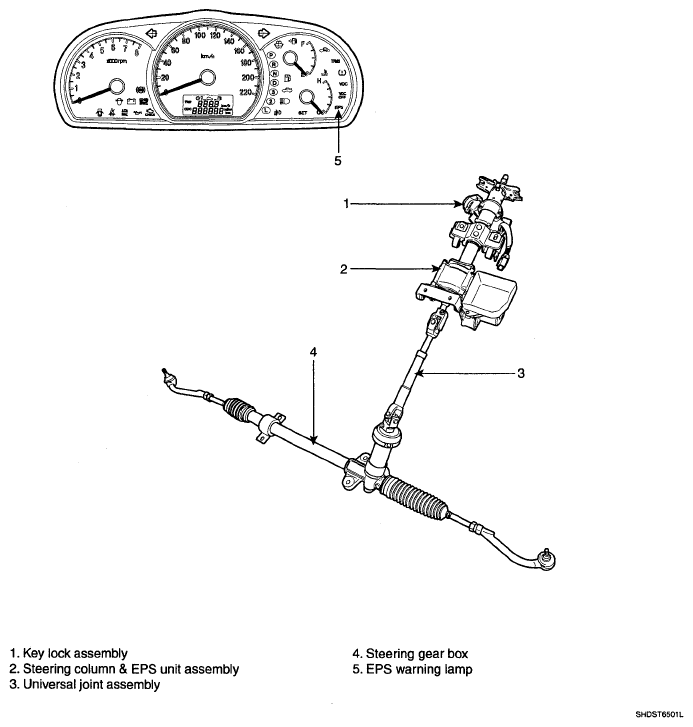

Fig 1: Identifying EPS Components

G05364550

Courtesy of HYUNDAI MOTOR CO.
