Power Window Switch

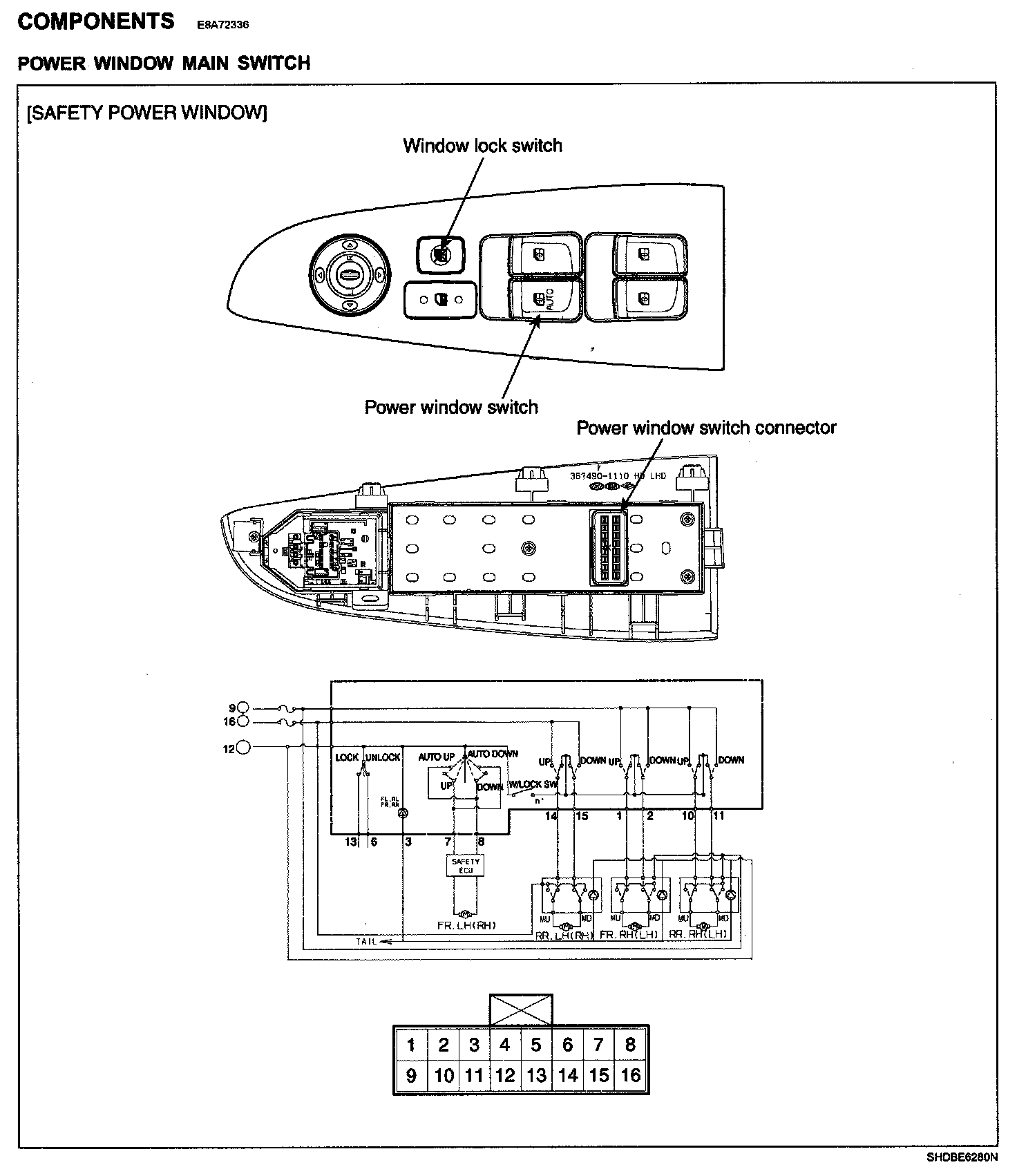

Power Window Main Switch - Components:

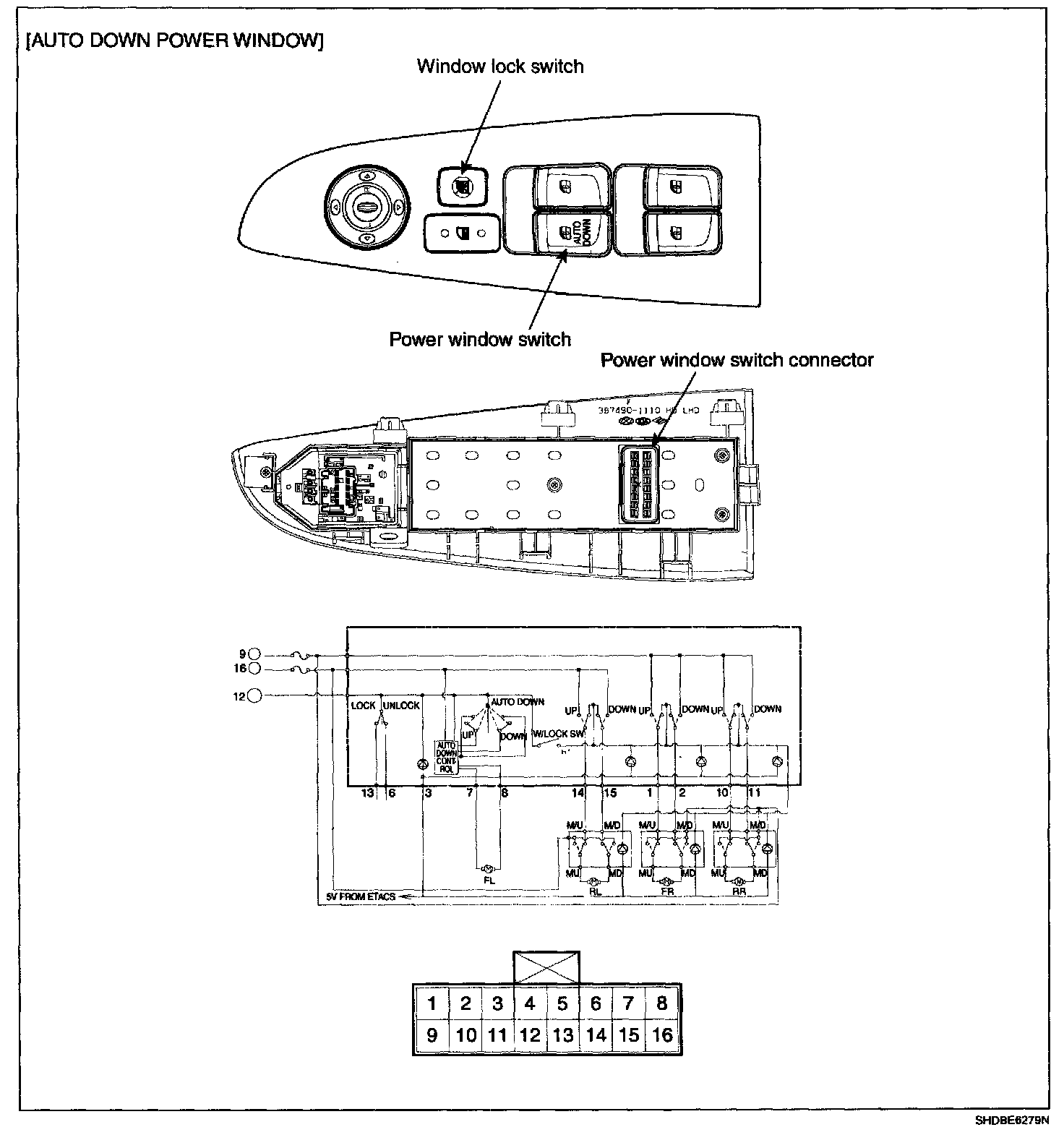

Auto Down Power Window:

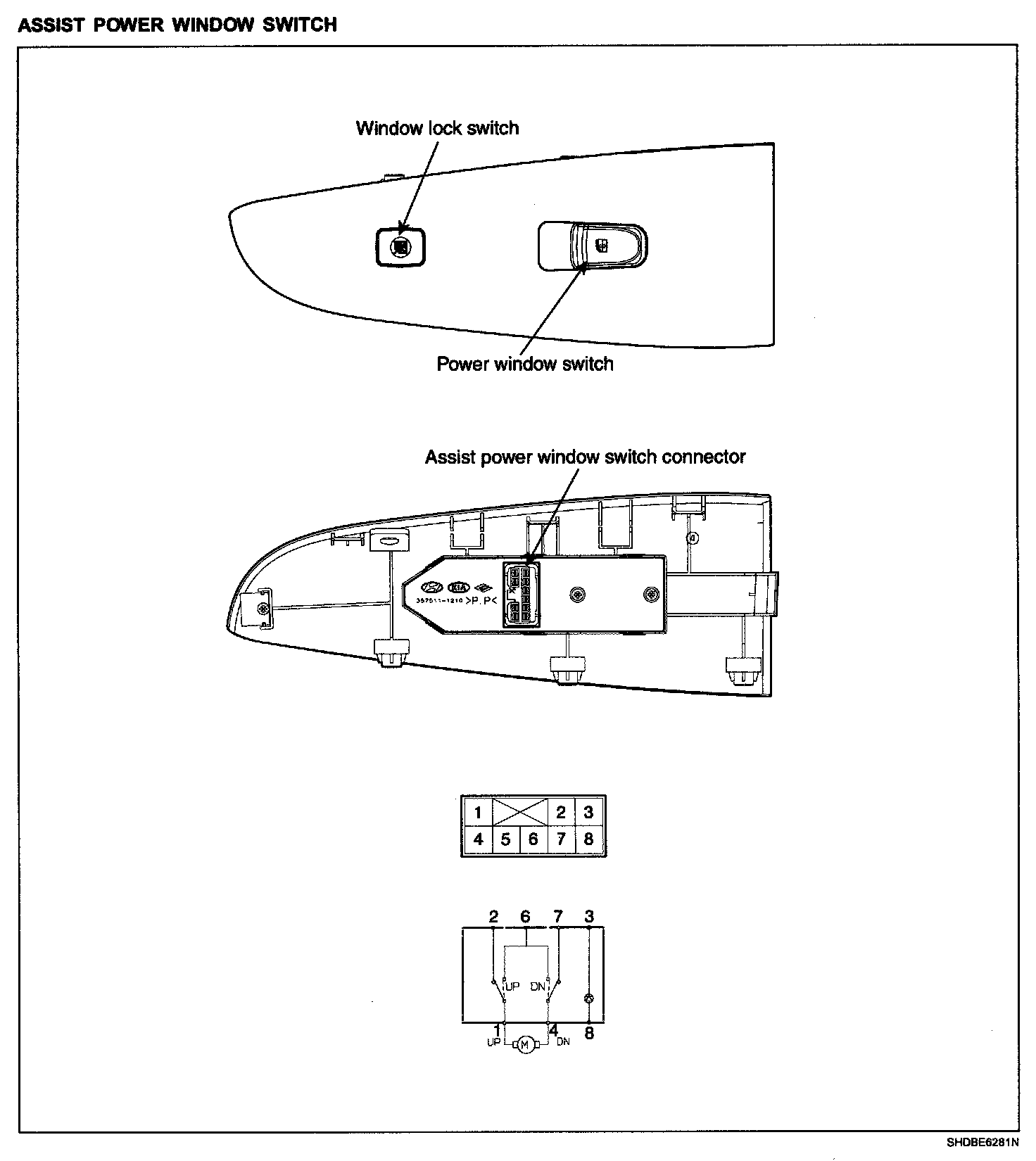

Assist Power Window Switch:

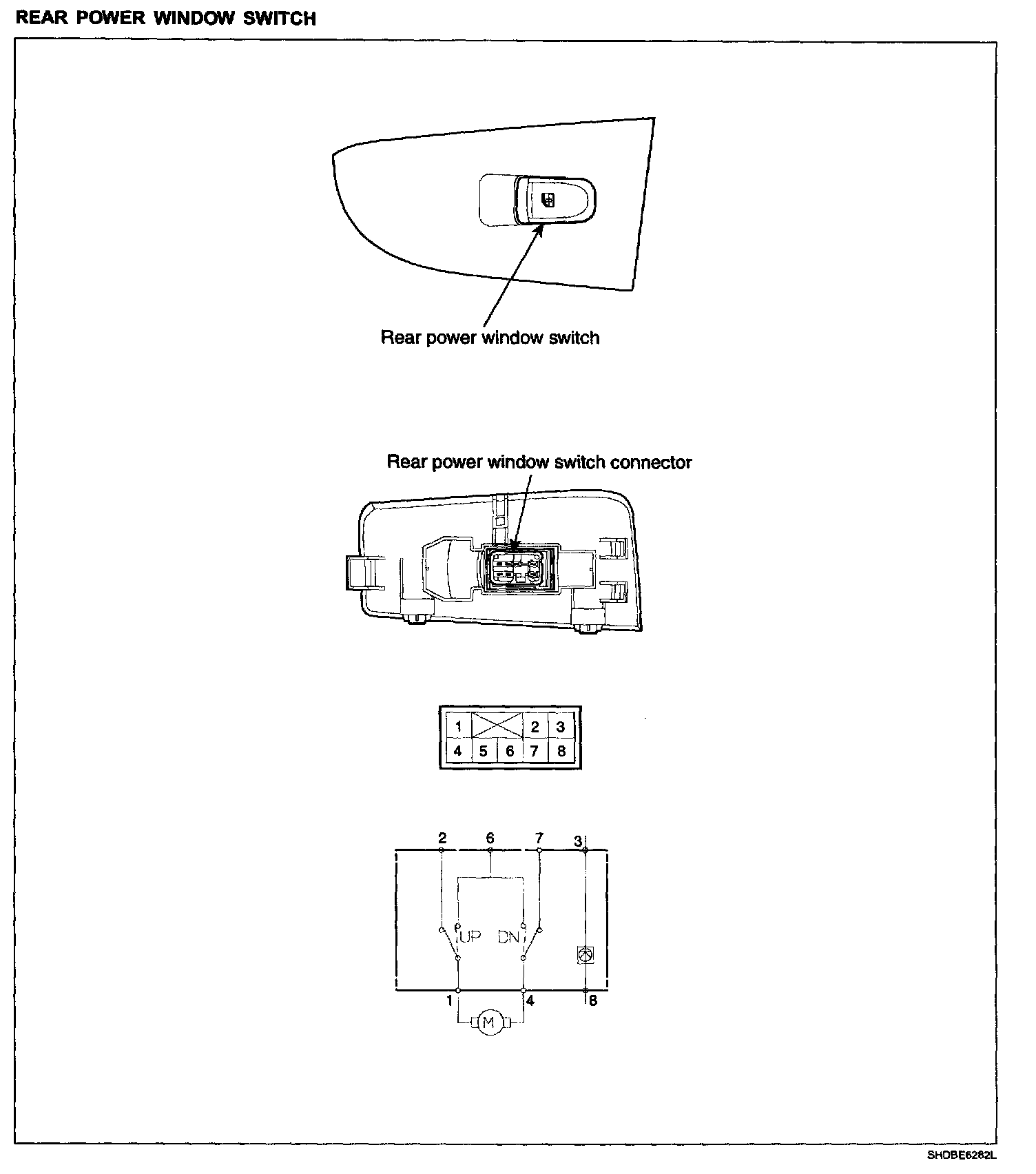

Rear Power Window Switch - Components:
