Solar Sensor: Service and Repair
PHOTO SENSORREPLACEMENT
1. Disconnect the negative (-) battery terminal.

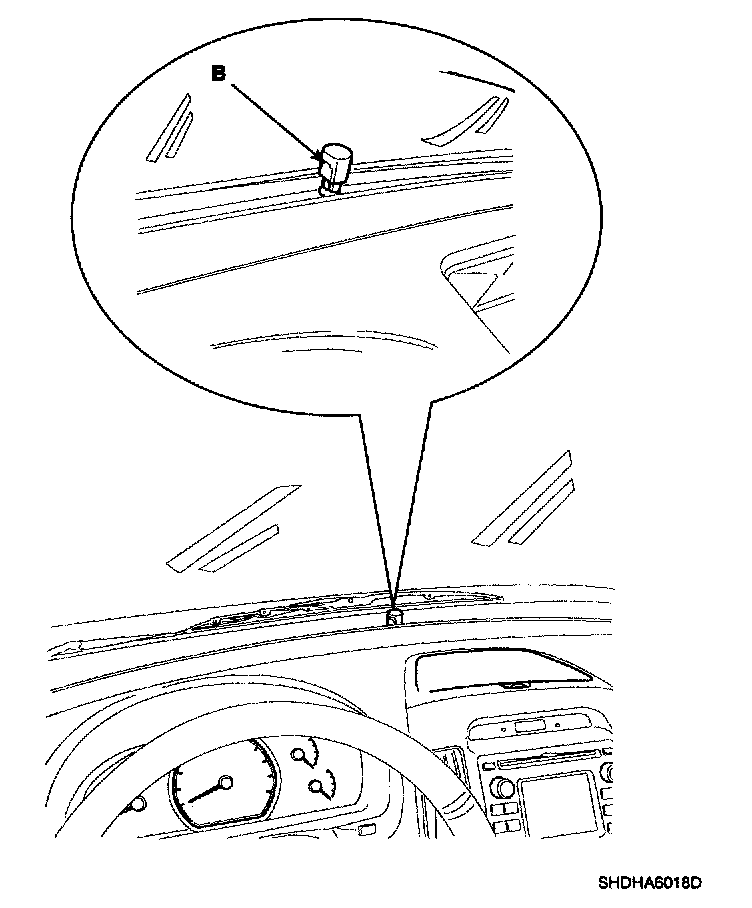

2. With the (-) driver, remove the photo sensor (B) from the center of defrost nozzle.
3. Install in the reverse order of removal.
REPLACEMENT
1. Disconnect the negative (-) battery terminal.
2. With the (-) driver, remove the photo sensor (B) from the center of defrost nozzle.
3. Install in the reverse order of removal.
