Oxygen Sensor: Specifications

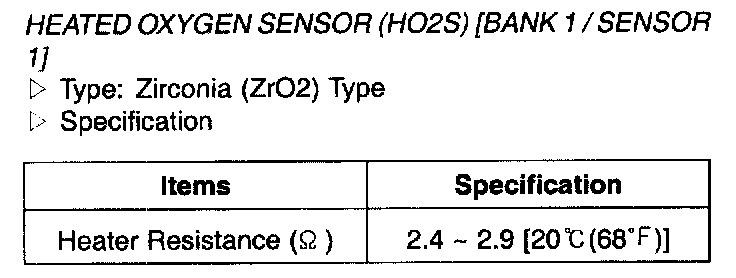

Heated Oxygen Sensor(HO2S) (Bank 1 / Sensor 1) - Specification:

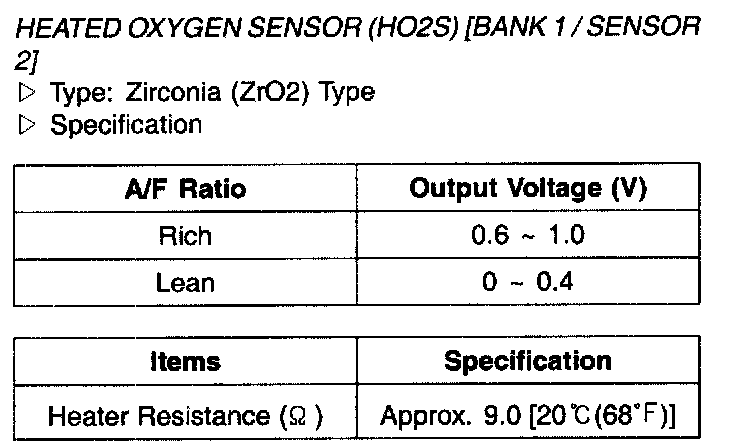

Heated Oxygen Sensor(HO2S) (Bank 1 / Sensor 2) - Specification:
