Timer/Control Unit, Accessory Control

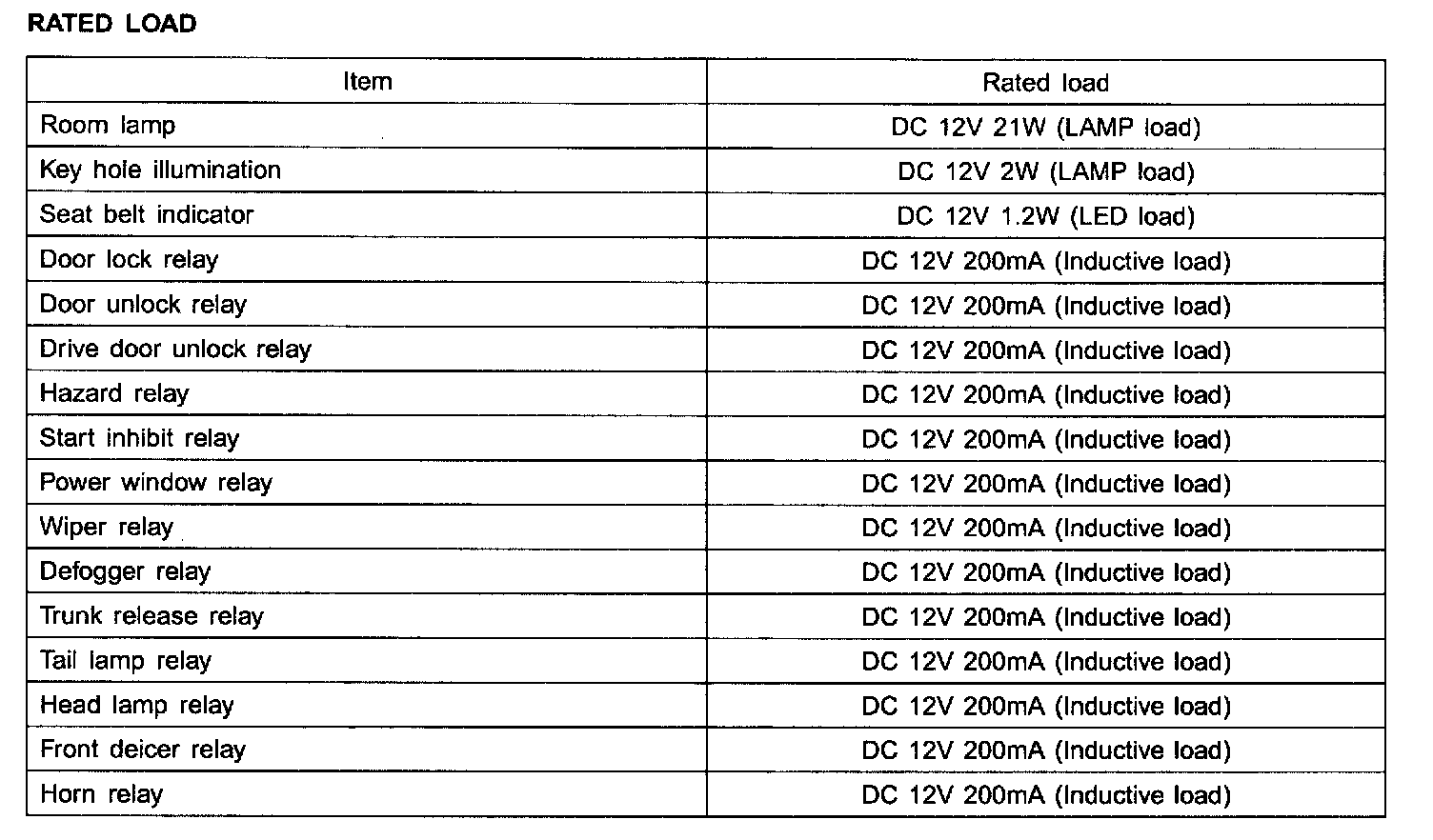

Body Control Module - Specifications (Part 1):



Body Control Module - Specifications (Part 2):
