Shift Lever: Installation

Install the control cable assembly to transaxle (refer to INSTALLATION ).
Install the retainer (A) and nuts (B).
TORQUE:

12-15Nm (1.2-1,5kgf.m, 8.7-10.8lb-ft)

NOTE: In case, install the crush pad and cowl cross bar (refer to CRASH PAD and HEATER UNIT ).

Fig 1: Identifying Retainer
Install the shift lever assembly (A).
TORQUE : 9-14Nm (0.9-1.4kgf.m, 8.7-10.8lb-ft)

Fig 2: Identifying Shift Lever Assembly
Connect the interlock switch connector (A).

Fig 3: Identifying Interlock Switch Connector
Install the control cable assembly (B) by installing the clamp (A).

Fig 4: Identifying Control Cable Assembly

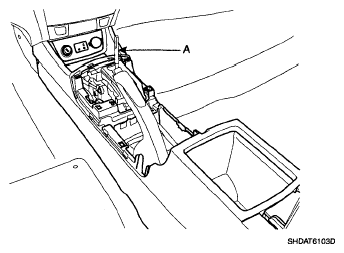

Install the center console, (refer to CONSOLE in BD group)

Fig 5: Identifying Center Console

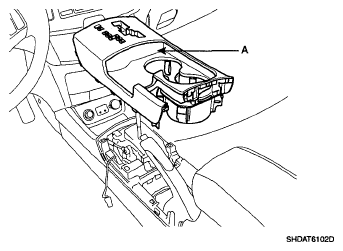

Install the center console cover (A).

Fig 6: Identifying Center Console Cover

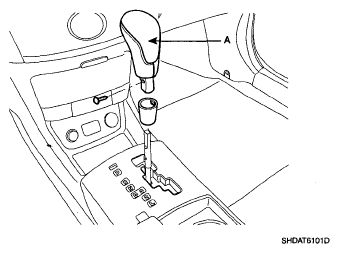

Install the shift lever knob (A).

Fig 7: Identifying Shift Lever Knob
