Component Inspection

Measure voltage between terminal 3 of the sensor harness connector and chassis ground (Do not disconnect FTPS harness connector)

Specification : Voltage increases proportionally with decreasing pressure (Approx. 2.5V to 4.5V)

PRESSURE SPECIFICATIONS

Pressure (kPa)	-6.67	0	6.67
Output Voltage (V)	0.5	2.5	4.5

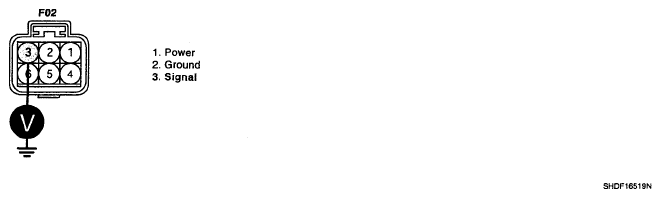

Fig 1: Measuring FTPS Output Voltage Between Terminal 3 (Back Probe) Of FTPS Harness Connector And Chassis Ground

Is voltage within the specification?
YES
- Check for poor connection between ECM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure
NO
- Check FTPS for contamination, deterioration, or damage. Substitute with a known-good FTPS and check for proper operation. If the problem is corrected, replace FTPS and then go to "VERIFICATION OF VEHICLE REPAIR " procedure
