Component Inspection
- Check transponder and ECU status
- IGN "ON" & Engine "OFF" with key intended to register

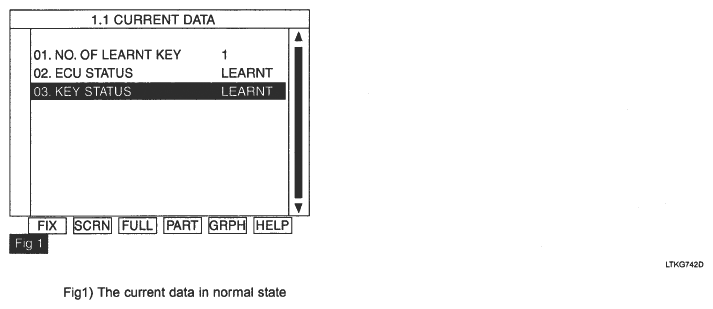

- Monitor the "KEY STATUS" and "ECU STATUS' Parameter on the Scantool.
Specification : 'LEARNT'
- Is the measured value within specifications?
YES
Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
Go to "Check transponder" procedure.
- Check transponder
- IGN "ON" & Engine "OFF"
- Neutralize PCM (ECM) and Register transponder key by scantool.NOTE: Pin code is requied to Neutralize PCM (ECM) and to Register transponder key
- Are Neutralizing and Registering completed normally?
YES
Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
Substitute with a known-good transponder and check for proper operation.
If the problem is corrected, replace transponder and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
