Park/Tail Lamps Function
- Necessary conditions to switch ON :
- By putting the Head lamp switch in position 'Park and Tail lamp' or 'Head lamp Low Beam' or Auto light activation or DRL activation
- Necessary conditions to switch OFF :
- If they are released by the Head lamp switch (Auto light function deactivated) and if DRL function is deactivated
- If the Auto light function is active but the Auto light Sensor signal status is OFF or Battery Saver function is active.

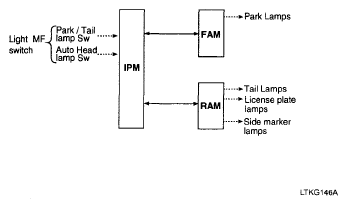

- Functional diagram
Courtesy of HYUNDAI MOTOR CO.
