Power Supply Circuit Inspection

Check open in power circuit
1. Ignition "ON" & engine "OFF".
2. Measure the resistance between wind shield defogger power circuit of FAM (BEC-FE-3) and wind shield defogger (E04-2).
  Specification : 0 Ω

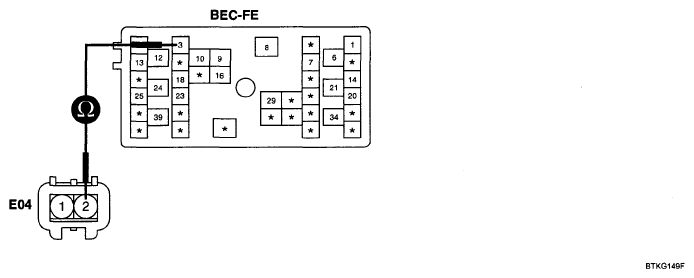

  Fig 1: Measuring Resistance Between Wind Shield Defogger Power Circuit Of FAM And Wind Shield Defogger
  Courtesy of HYUNDAI MOTOR CO.
3. Is the measured resistance within the specification?
  YES

  Go to " 2Check short in power circuit".

  NO

  Repair open in power circuit and go to "VERIFICATION OF VEHICLE REPAIR ".
Check short in power circuit
1. Ignition "ON" & engine "OFF".
2. Disconnect wind shield defogger.
3. Measure the resistance between wind shield defogger power circuit of FAM (BEC-FE-3) and chassis ground.
  Specification : ∞ Ω

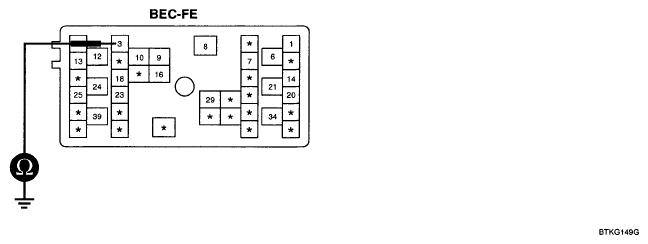

  Fig 2: Measuring Resistance Between Wind Shield Defogger Power Circuit Of FAM And Chassis Ground
  Courtesy of HYUNDAI MOTOR CO.
4. Is the measured resistance within the specification?
  YES

  Go to "GROUND CIRCUIT INSPECTION ".

  NO

  Repair open in power circuit and go to "VERIFICATION OF VEHICLE REPAIR ".
