Back Warning Control Module: Replacement

  1. Remove the right side trim of the trunk (Refer to INTERIOR TRIM ).
  2. Loosen the mounting bolts and remove the back warning control unit (A) from the quarter panel.

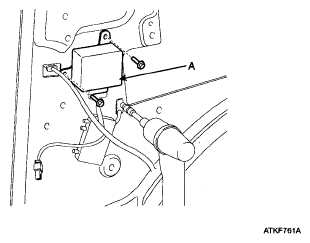

Fig 1: Loosening Back Warning Control Unit Mounting Bolts
G05325552Courtesy of HYUNDAI MOTOR CO.
