Monitor SCANTOOL Data

VARIANT CODE

1. Check for improper installation of PCM (ECM & TCM)/ESC.
2. Connect scantool to Data Link Connector (DLC).
3. Ignition "ON".
4. Go in Anti-Lock brake system (figure 1).
5. Perform variant code.
6. Disconnect scantool.
7. Ignition "OFF" and then ignition "ON". Go to "COMPONENT INSPECTION " Procedure.

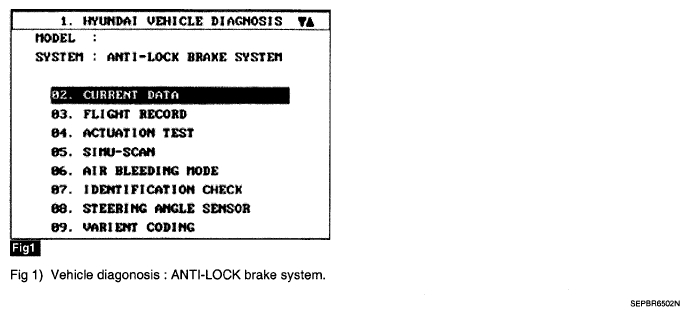

Fig 1: Identifying Scan Tool Display Screen - HYUNDAI VEHICLE DIAGNOSIS

Courtesy of HYUNDAI MOTOR CO.
