SRS Control Module: Removal

  1. Disconnect the negative (-) cable from battery and wait for at least three minutes.
  2. Remove ignition key from the vehicle.
  3. Disconnect the DAB, PAB, SAB, CAB and BPT connectors.
  4. Remove the floor console and heater ducts. (Refer to FLOOR CONSOLE REPLACEMENT ).
  5. Press the lock (1), then pull back the connector lever (2) until it clicks.

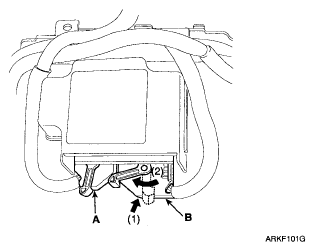

    Fig 1: Identifying Lock And Connector Lever
    G05322908Courtesy of HYUNDAI MOTOR CO.
  6. Disconnect the SRSCM harness connector (A) and (B) from the SRSCM.
  7. Remove the SRSCM mounting bolt (A) and nuts (B) from the SRSCM, then remove the SRSCM.

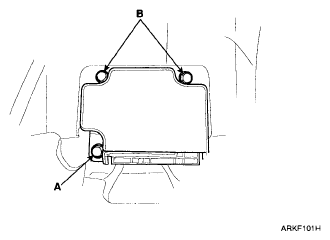

Fig 2: Identifying SRSCM Mounting Bolt And Nuts
G05322909Courtesy of HYUNDAI MOTOR CO.
