Component Inspection

Check Mirror folding motor
1. Connect scantool to Data Link Connector (DLC).
2. Ignition "ON" & engine "OFF"
3. Select 'ACTUATION TEST' mode on scantool and press [F1] to start

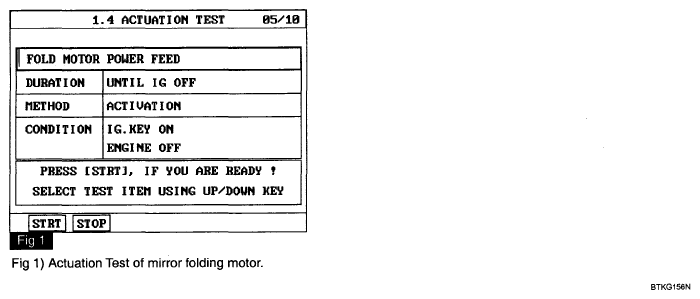

  Fig 1: Diagnosis Tool Display - ACTUATION TEST
  Courtesy of HYUNDAI MOTOR CO.
4. Does left outside mirror motor work properly?
  YES

  Go to " 2Check Mirror folding switch" procedure.

  NO

  Substitute with a known-good left outside mirror and check for proper operation.

  If the problem is corrected, replace left outside mirror and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
Check Mirror folding switch
1. Ignition "ON" & engine "OFF"
2. Connect Mirror folding Motor.
3. check if mirror folding motor work properly while operating mirror folding switch.
4. Does left mirror folding motor work properly?
  YES

  Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

  NO

  Substitute with a known-good DDM and check for proper operation.

  If the problem is corrected, replace DDM and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
