Cruise Control Main Switch: Inspection

MEASURING RESISTANCE

1. Disconnect the cruise control switch connector from the control switch.

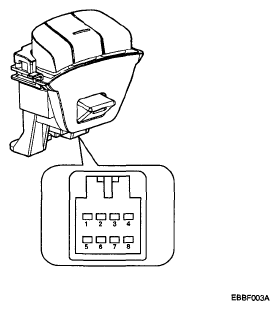

   Fig 1: Identifying Cruise Control Switch Connector To Control Switch

   Courtesy of HYUNDAI MOTOR CO.
2. Measure resistance between terminals on the control switch when each function switch is ON (switch is depressed).
   RESISTANCE REFERENCE CHART



   Function switch	Terminal	Resistance
   Cruise Main	RH 1-2	3.9kΩ ± 5%
   Cancel	RH 1-3	0Ω ± 5%
   Set/Coast	RH 1-3	220Ω ± 5%
   Resume/Accel	RH 1-3	910Ω ± 5%

3. If not within specification, replace switch.

MEASURING VOLTAGE

1. Connect the cruise control switch connector to the control switch.
   Fig 2: Identifying Cruise Control Switch Connector To Control Switch

   Courtesy of HYUNDAI MOTOR CO.
2. Measure voltage between terminals on the harness side connector when each function switch is ON (switch is depressed).
   VOLTAGE SPECIFICATIONS



   Function switch	Terminal	Voltage
   Cruise Main	RH 1-2	-
   Cancel	RH 1-3	0.0V ± 0.22V
   Set/Coast	RH 1-3	1.5V ± 0.22V
   Resume/Accel	RH 1-3	3.0V ± 0.22V

3. If not within specification, replace switch.
