Front Wheel Speed Sensor: Removal: Notes

  1. Remove the front wheel speed sensor mounting bolt (A) and the wire bracket mounting bolt (B).

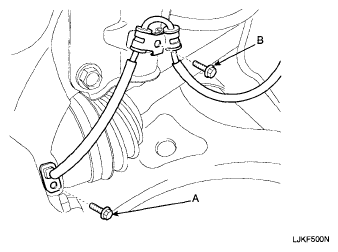

    Fig 1: Identifying Front Wheel Speed Sensor Mounting Bolt
    G05323211Courtesy of HYUNDAI MOTOR CO.
  2. Remove the wire bracket bolt (A).

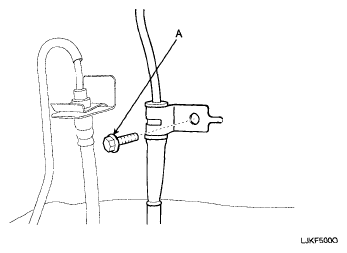

    Fig 2: Identifying Wire Bracket Bolt
    G05323212Courtesy of HYUNDAI MOTOR CO.
  3. Remove the front wheel guard.
  4. Remove the front wheel speed sensor after disconnecting the wheel speed sensor connector (A).

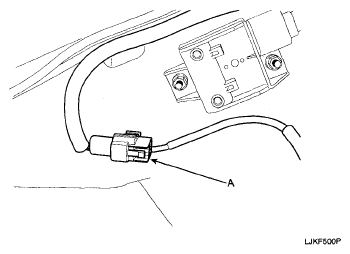

Fig 3: Identifying Wheel Speed Sensor Connector
G05323213Courtesy of HYUNDAI MOTOR CO.
