ESC Switch: Inspection

  1. Remove the ESC OFF switch from the switch panel on the crash pad of the driver's side.

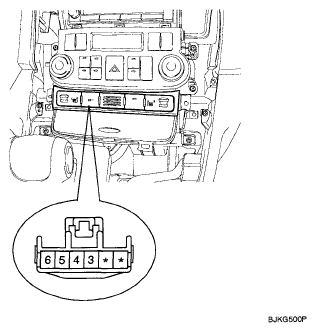

    Fig 1: Identifying ESC Off Switch From Switch Panel
    G05323246Courtesy of HYUNDAI MOTOR CO.
  2. Check the continuity between the switch terminals as the ESC OFF switch is engaged.

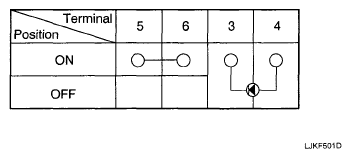

Fig 2: ESC Switch Connector Terminal Continuity Chart
G05323247Courtesy of HYUNDAI MOTOR CO.
