Starter Relay: Inspection
- Remove the fuse box cover.

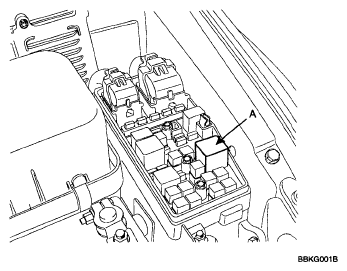

- Remove the starter relay (A).
Courtesy of HYUNDAI MOTOR CO.
- Using an ohmmeter, check that there is continuity between each terminal.
CONTINUITY CHART
| Terminal |
Continuity |
| 30 - 87 |
NO |
| 85 - 86 |
YES |
- Apply 12V to terminal 85 and ground to terminal 86. Check for continuity between terminals 30 and 87.
Courtesy of HYUNDAI MOTOR CO.
- If there is no continuity, replace the starter relay.
- Install the starter relay.
- Install the fuse box cover.
