Component Inspection

Check resistance of OTS

IG "ON" & ENG "OFF"
Monitor Oil Temperature parameter on the scantool
IG "OFF" & ENG "OFF"
Disconnect OTS connector.

Measure resistance between terminal 1 and 2 of OTS connector (Component Side)

SPECIFICATION:

SPECIFICATION

Temperature (°C/°F)	Resistance (kΩ)
-20°C/ -4°F	16.52kΩ
20°C/ 68°F	2.45kΩ
80°C/ 176°F	0.29kΩ

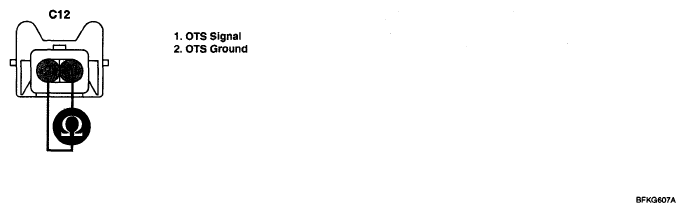

Fig 1: Measuring Resistance Between Terminal 1 And 2 Of OTS Connector (Component Side)

Courtesy of HYUNDAI MOTOR CO.

Is the measured resistance within specification ?
YES
- Go to " 2Check PCM" as follows.
NO
- Substitute with a known - good OTS and check for proper operation. If the problem is corrected, replace OTS and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

Check PCM
1. Ignition "OFF" and Connect Scantool
2. Ignition "ON" & Engine "OFF"
3. Select simulation function on scantool.
4. Simulate voltage at terminal "1" of OTS signal harness connector.

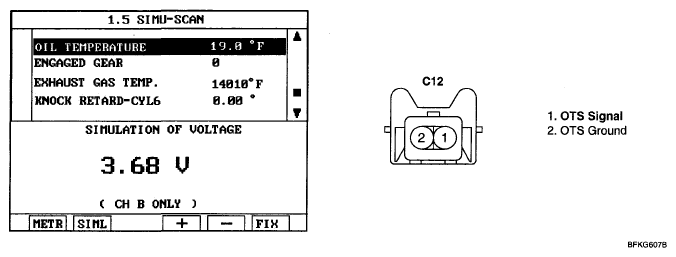

  Fig 2: Scantool Display - OIL TEMPERATURE
  Courtesy of HYUNDAI MOTOR CO.
5. Does the OTS signal value changes according to simulation voltage ?
  YES
  - Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace if necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure
  NO
  - Substitute with a known - good PCM and check for proper operation. If the problem is corrected, replace PCM and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

NOTE: There is a memory reset function on scantool that can erase optional parts automatically detected and memorized by PCM. After testing PCM on the vehicle, use this function to reuse the PCM on the others
