Signal Waveform And Data

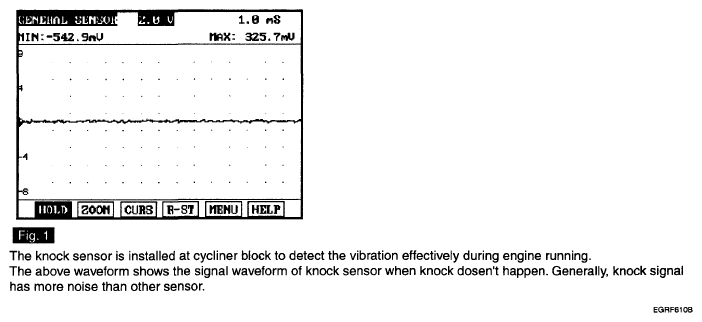

Fig 1: Signal Waveform And Data

Courtesy of HYUNDAI MOTOR CO.

The knock sensor is installed at cylinder block to detect the vibration effectively during engine running.

The above waveform shows the signal waveform of knock sensor when knock doesn't happen. Generally, knock signal has more noise than other sensor.
