DTC P0532 A/C Refrigerant Pressure Sensor "A" Circuit Low Input
>>
Schematic Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagram

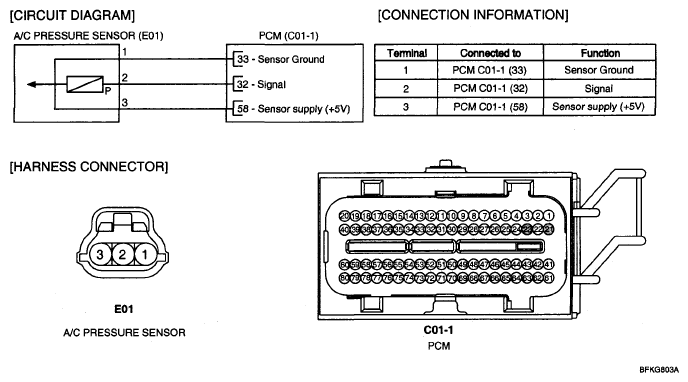

Fig 1: A/C Refrigerant Pressure Sensor - Schematic Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
