Automatic Transaxle Control System: Disassembly

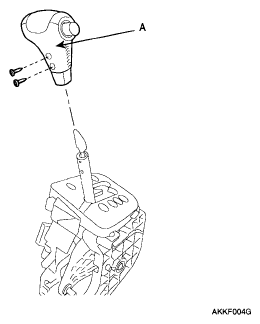

  1. Remove the shift lever knob (A) by removing the two screws.
    Fig 1: Identifying Shift Lever Knob
    G05322449Courtesy of HYUNDAI MOTOR CO.

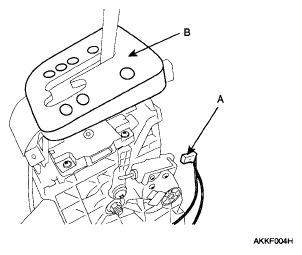

  2. Disconnect the solenoid connector (A) and remove the indicator panel (B).
    Fig 2: Identifying Solenoid Connector And Indicator Panel
    G05322450Courtesy of HYUNDAI MOTOR CO.
  3. Remove the switch assembly (A) and 'P' position switch assembly.
    Fig 3: Identifying Switch Assembly And Position Switch Assembly
    G05322451Courtesy of HYUNDAI MOTOR CO.

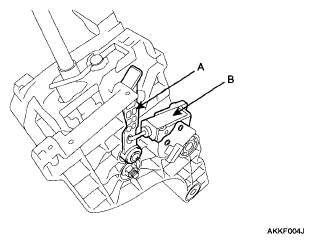

  4. Remove the solenoid (B) and solenoid lever (A).
    Fig 4: Identifying Solenoid And Solenoid Lever
    G05322452Courtesy of HYUNDAI MOTOR CO.

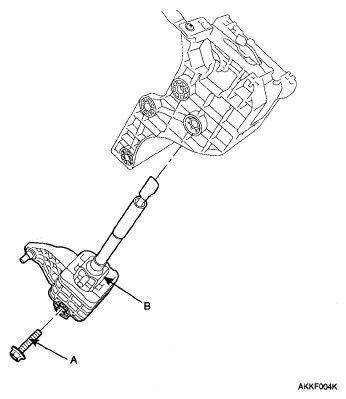

  5. Remove the lever assembly (B) by the mounting bolt (A).
    Fig 5: Identifying Lever Assembly With Mounting Bolt
    G05322453Courtesy of HYUNDAI MOTOR CO.

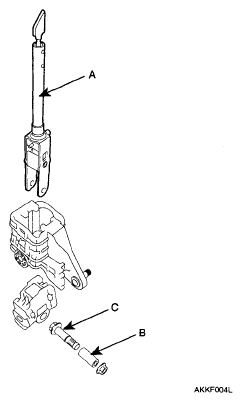

  6. Remove the lever (A) and tube (B) by removing the bolt (C).
    Fig 6: Identifying Lever, Tube And Bolt
    G05322454Courtesy of HYUNDAI MOTOR CO.
