Automatic Transaxle Control System: Installation

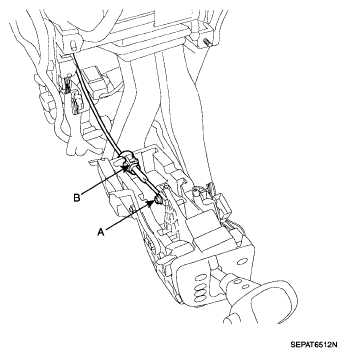

Install the shift cable mounting nut (A) and cap (B).
TORQUE:

10~14 Nm (100~140 kgf.cm, 7.3~10.2 lb-ft)

Fig 1: Identifying Shift Cable Mounting Nut And Cap
Courtesy of HYUNDAI MOTOR CO.

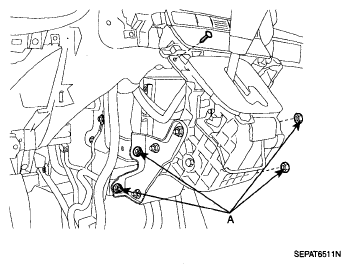

Install the shift lever assembly mounting nuts (A).
TORQUE:

19~24 Nm (190~240 kgf.cm, 13.8~17.5 lb-ft)

Fig 2: Identifying Shift Lever Assembly Mounting Nuts
Courtesy of HYUNDAI MOTOR CO.

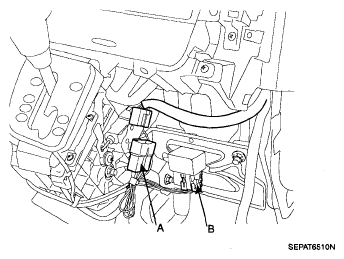

Connect the connector (A) and ATM connector (B).

Fig 3: Identifying Connector And ATM Connector
Courtesy of HYUNDAI MOTOR CO.

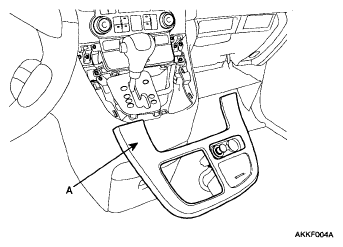

Install the front console cover (A), (see INTERIOR ).

Fig 4: Identifying Front Console Cover
Courtesy of HYUNDAI MOTOR CO.

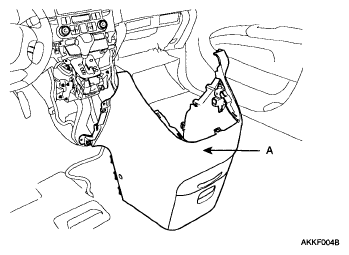

Install the console upper cover (A). (see INTERIOR ).

Fig 5: Identifying Console Upper Cover
Courtesy of HYUNDAI MOTOR CO.
