Power Supply Circuit Inspection

Check open in power circuit
1. Ignition "ON" & engine "OFF".
2. Measure the resistance between Left turn signal lamp power circuit of FAM (BCM-FE-52)and turn signal lamp (E24-1).
  Specification : 0 Ω

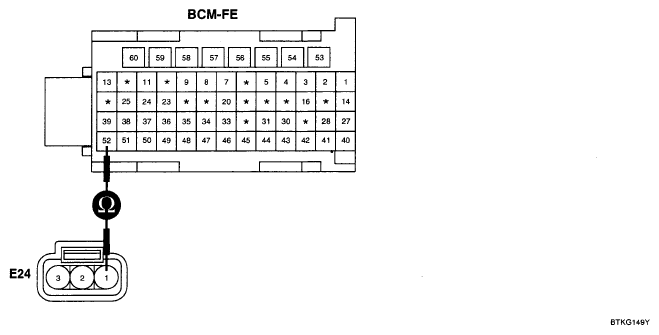

  Fig 1: Measuring Resistance Between Left Turn Signal Lamp Power Circuit Of FAM (BCM-FE-52)And Turn Signal Lamp (E24-1)
  Courtesy of HYUNDAI MOTOR CO.
3. Is the measured resistance within the specification?
  YES

  Go to "GROUND CIRCUIT INSPECTION ".

  NO

  Repair open in power circuit and go to "VERIFICATION OF VEHICLE REPAIR ".
