Power Supply Circuit Inspection

Check open in power circuit
1. Ignition "ON" & engine "OFF"
2. Measure the resistance between tail license side marker lamp power circuit connector terminal at RAM side (BCM-RF2-19) and backup lamp (F18-5).
3. Measure the resistance between tail license side marker lamp power circuit connector terminal at RAM side (BCM-RF2-20) and backup lamp (F19-5).
  Specification : 0 Ω

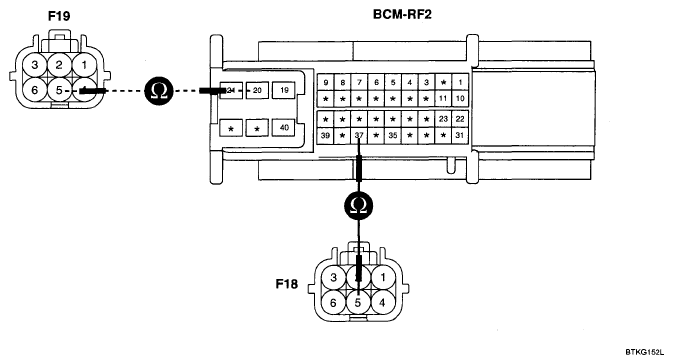

  Fig 1: Measuring Resistance Between Tail License Side Marker Lamp Power Circuit Connector Terminal At RAM Side (BCM-RF2-20) And Backup Lamp (F19-5)
  Courtesy of HYUNDAI MOTOR CO.
4. Is the measured resistance within the specification?
  YES

  Go to "GROUND CIRCUIT INSPECTION ".

  NO

  Repair open in power circuit and Go to "VERIFICATION OF VEHICLE REPAIR ".
