Key Reminder Unlock

  1. Key reminder door unlock does not take into account the lock/unlock commands from RKE, key cylinder or door lock switches. It only takes into account the state of the door lock monitoring switch, key reminder switch and door open status in order to proceed with the unlock sequence or not.
  2. Functional Diagram

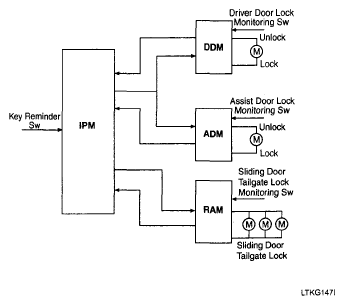

Fig 1: Key Reminder Unlock - Functional Diagram
G05324900Courtesy of HYUNDAI MOTOR CO.
